Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

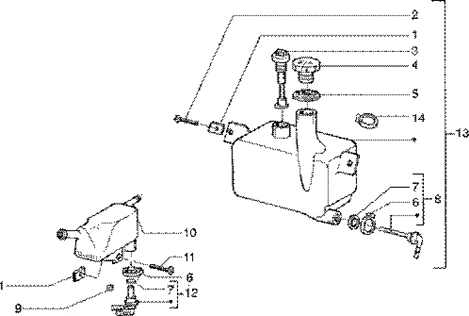

Châssis : T35 RESERVOIR D'HUILE MIX-DEGAZEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/9/6/img/67096.jpg)
3 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" 50 TYPHOON 1997>2009, NRG 1999>2004, FLY 2005>, ZIP 1997>, VESPA PRIMAVERA 2013>, VESPA SPRINT 2014>/GILERA 50 RUNNER 1999>2004 -573458 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/2/img/66042.jpg)
4 |
OIL TANK CAP "PIAGGIO GENUINE PART" COMMON FOR ALL 50CC SCOOTERS 2 STROKE -259829 More informationQuantity required : 1 |
||||||
5 |
573085 - CUVETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
6 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
7 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/5/img/67105.jpg)
8 |
OIL TANK UNION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -574362 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
9 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904 More informationQuantity required : 1 |
||||||
|
10 |
577871 - DEGAZEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
11 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/7/4/img/81374.jpg)
12 |
FUEL TAP "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -577881 More informationQuantity required : 1 |
||||||
|
13 |
574641 - RESERVOIR HUILE FX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
14 |
COLLIER DE SERRAGE DURITE (7X10) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002903 More informationQuantity required : 1 |
