Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

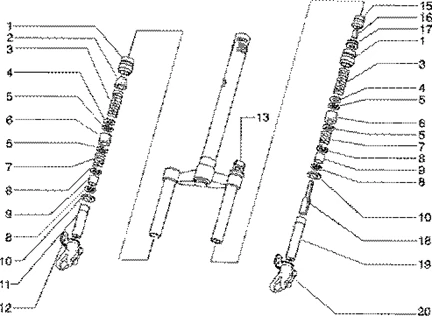

Suspensions-roues : T41 PIECES COMPOSANT LA FOURCHE AV MODELE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T41.PNG)
1 |
494886 - PROTECTION More informationQuantity required : 2 |
||||||
|
2 |
SILENTBLOC FOURCH FX |
||||||
|
3 |
561925 - RESSORT More informationQuantity required : 4 |
||||||
|
4 |
BOUCHON |
||||||
|
5 |
561922 - CLIPS More informationQuantity required : 2 |
||||||
|
6 |
494887 - MOYEU More informationQuantity required : 2 |
||||||
|
7 |
RESSORT |
||||||
|
8 |
561919 - CLIPS More informationQuantity required : 4 |
||||||
|
9 |
274468 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/0/img/67050.jpg)
10 |
FORK OIL SEAL "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -564236- More informationQuantity required : 2 |
||||||
|
11 |
494690 - TIGE More informationQuantity required : 1 |
||||||
|
12 |
SABOT DT |
||||||
|
12 |
COUPLE EMBOUT BEQUILLE |
||||||
|
13 |
494694 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
SILENBLOC |
||||||
|
16 |
561921 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
17 |
ECROU |
||||||
|
18 |
CARTOUCHE FOURCHE FX |
||||||
|
19 |
TIGE |
||||||
|
20 |
COUPLE EMBOUT BEQUILLE |
