Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

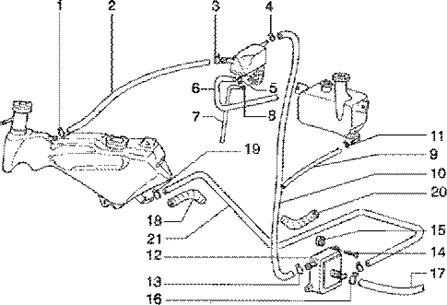

Châssis : T36 CIRCUIT D'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T36.PNG)
1 |
CM002912 - COLLIER More informationQuantity required : 2 |
||||||
|
2 |
CM002205 - TUBE DEPRESSIONE More informationQuantity required : 1 |
||||||
|
3 |
CM002912 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
4 |
271477 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
5 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
6 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/9/img/109029.jpg)
7 |
DEPRESSION PIPE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -1R000158 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
8 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/3/img/73043.jpg)
9 |
OIL HOSE-FROM TANK TO OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM101509- More informationQuantity required : 1 |
||||||
|
10 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
|
11 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/1/5/img/92715.jpg)
12 |
82592R - POMPE More informationQuantity required : 1 |
||||||
|
13 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
14 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/1/img/66031.jpg)
15 |
SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904- More informationQuantity required : 1 |
||||||
|
16 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
|
17 |
CM001102 - TUYAU More informationQuantity required : 1 |
||||||
|
18 |
GAINE ESSENCE |
||||||
|
19 |
COLLIER |
||||||
|
20 |
GAINE |
||||||
|
21 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
