Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

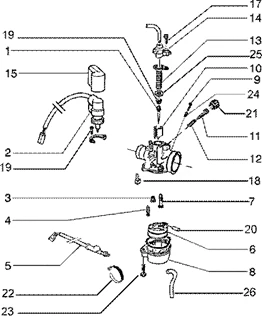

Moteur : T17 CARBURATEUR DELL'ORTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T17.PNG)
1 |
487123 - AIGUILLE M06 More informationQuantity required : 1 |
||||||
|
2 |
STARTER ELECTRIQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/2/img/66572.jpg)
2 |
CHOKE "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP 1995>1999, VESPA ET2/GILERA 50 STALKER, RUNNER -479093 More informationQuantity required : 1 |
||||||
|
3 |
GICLEUR MAXI 86 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/6/img/73146.jpg)
4 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -CM128501- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
5 |
CARB RESISTOR MODULE "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, VESPA-S, 125 X8, LIBERTY -82961R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
6 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
|
7 |
GICLEUR 45 100 FX |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/9/img/66659.jpg)
8 |
484369 - CUVE More informationQuantity required : 1 |
||||||
|
9 |
VIS RICHESSE RALENTI |
||||||
|
10 |
432507 - BOISSEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/7/img/68567.jpg)
10 |
SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 TYPHOON 2STROKE/GILERA 125 RUNNER 2STROKE -825843- More informationQuantity required : 1 |
||||||
|
11 |
VIS |
||||||
|
11 |
CM107705 - VIS More informationQuantity required : 1 |
||||||
|
12 |
432515 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
|
13 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/1/img/66421.jpg)
14 |
432412 - COUVERCLE CARBU More informationQuantity required : 1 |
||||||
|
14 |
8253595 - CARTER More informationQuantity required : 1 |
||||||
|
15 |
CAPUCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/8/img/66228.jpg)
16 |
289575 - VIS More informationQuantity required : 2 |
||||||
|
17 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
18 |
OIL VALVE (ON CARB) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -436206 More informationQuantity required : 1 |
||||||
|
19 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/9/img/66209.jpg)
20 |
288881 - AXE FLOTTEUR More informationQuantity required : 1 |
||||||
|
21 |
432425 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
22 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/0/img/66200.jpg)
23 |
288862 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
24 |
085285 - RESSORT More informationQuantity required : 1 |
||||||
|
25 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
26 |
ANGLED GUIDING TUE FOR CARB "PIAGGIO GENUINE PART"COMMON FOR ALL SCOOTER 50 CC -113903- More informationQuantity required : 1 |
