Vehicle Exploded View - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

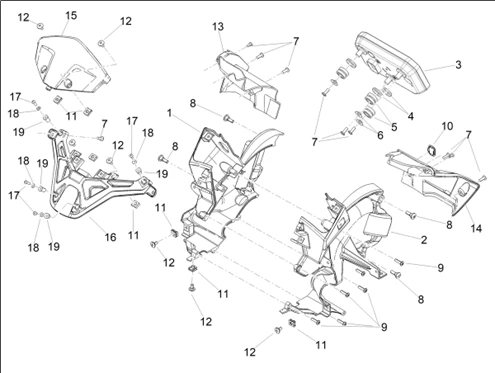

Feux - instruments : 08.02 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_08.02.png)
1 |
2B013089 - SUPPORT DE TABLEAU DE BORD D More informationQuantity required : 1 |
||||||
|
2 |
2B013090 - SUPPORT DE TABLEAU DE BORD G More informationQuantity required : 1 |
||||||
|
3 |
2B013090 - SUPPORT DE TABLEAU DE BORD G More informationQuantity required : 1 |
||||||
|
4 |
2B014518 - DOUILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
6 |
AP8121991 - DOUILLE; More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
7 |
AP8152270 - VIS More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 6 |
||||||
|
10 |
2B008462 - USB SOCKET CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
11 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
12 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500 More informationQuantity required : 7 |
||||||
|
13 |
2B008049 - RIGHT INTERNAL COVER More informationQuantity required : 1 |
||||||
|
14 |
2B008048 - LEFT INTERNAL COVER More informationQuantity required : 1 |
||||||
|
15 |
2B013088 - PROT.TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
16 |
2B008077 - WINDSCREEN SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
17 |
581957 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/2/img/70832.jpg)
18 |
895916 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
19 |
AP8144564 - CAOUTCHOUC AVEC INSERT More informationQuantity required : 4 |
