Vehicle Exploded View - APRILIA TUONO 660 4T 8V E5+ Factory 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

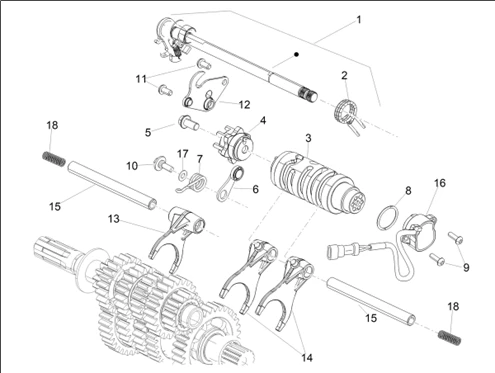

Moteur : 03.17 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1329/Tuono_660_4T_8V_E5_Factory_2025_EMEA_03.17.png)
1 |
2A001637 - SPEED GEAR SELECTOR SHAFT ASSY More informationQuantity required : 1 |
||||||
|
2 |
1A013662 - SELECTOR SPRING More informationQuantity required : 1 |
||||||
|
3 |
1A023473 - DESMODROMIQUE More informationQuantity required : 1 |
||||||
|
4 |
1A025507 - TAMB.SELECTEUR More informationQuantity required : 1 |
||||||
|
5 |
1A024282 - VIS A TETE HEXAGONALE More informationQuantity required : 1 |
||||||
|
6 |
1A024110 - LEVIER More informationQuantity required : 1 |
||||||
|
7 |
1A021613 - RESSORT DE SELECTION DES VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/9/img/69759.jpg)
8 |
857494 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
9 |
SCREW - (5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER -B0167965 More informationQuantity required : 2 |
||||||
|
10 |
1A021636 - VIS SPECIALE More informationQuantity required : 1 |
||||||
|
11 |
1A022022 - TORX HEAD SCREW M6X16 More informationQuantity required : 2 |
||||||
|
12 |
1A025995 - PLAQUE D'ARRET More informationQuantity required : 1 |
||||||
|
13 |
1A018190 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
14 |
1A023448 - FOURCHETTE More informationQuantity required : 2 |
||||||
|
15 |
1A025994 - More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/2/9/img/172929.jpg)
16 |
1A018096R - GEAR REFERENCE SENSOR More informationQuantity required : 1 |
||||||
|
17 |
1A021654 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/2/6/img/40326.jpg)
18 |
857175 - RESSORT More informationQuantity required : 2 |
