Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

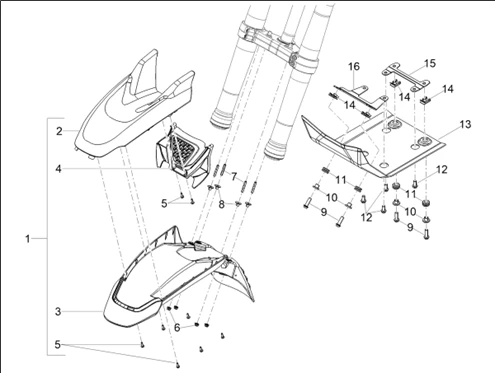

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_02.03.png)
1 |
2H006316000Q05 - GARDE-BOUE AV CPL. More informationQuantity required : 1 |
||||||
|
2 |
2H006317000Q05 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
2 |
2B005328 - COUVERCLE More informationQuantity required : 1 |
||||||
|
3 |
2B012709000Q05 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
3 |
2B012709 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
|
4 |
2B005530 - GRILLE More informationQuantity required : 1 |
||||||
|
5 |
AP8150512 - VIS TARAUD More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
|
7 |
2B005945 - VIS SANS TETE More informationQuantity required : 4 |
||||||
|
8 |
2B006410 - DOUILLE EN T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/0/8/img/142408.jpg)
9 |
2B002571 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
10 |
AP8221128 - "DOUILLE EN ""T"" 8,5X10,7X12" More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
11 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
12 |
2B007936 - HEXAG HEAD SCREW M8X16 WITH THREADLOCKE More informationQuantity required : 4 |
||||||
|
13 |
2B004655 - TABLIER DE CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
14 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268- More informationQuantity required : 4 |
||||||
|
15 |
2B004657 - PATTE More informationQuantity required : 1 |
||||||
|
16 |
2B004656 - PATTE More informationQuantity required : 1 |
