Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

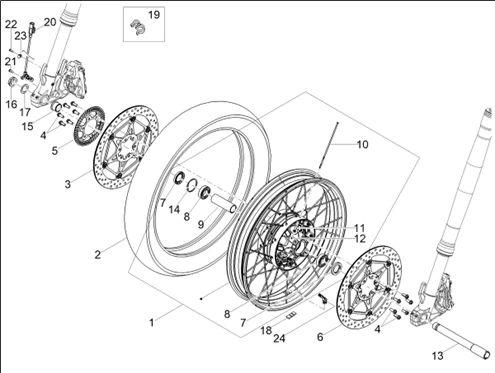

Roues : 05.01 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_05.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/8/img/172948.jpg)
1 |
2B007331 - FRONT WHEEL More informationQuantity required : 1 |
|||||||||
2 |
2B004302 - PNEU More informationQuantity required : 1 |
|||||||||
|
2 |
2B010336 - TYRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/5/7/img/109057.jpg)
3 |
FRONT BRAKE DISC - RIGHT "PIAGGIO GENUINE PART" APRILIA 900 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO/MOTO-GUZZI 1200 NORGE, STELVIO -B044279 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/0/6/2/img/139062.jpg)
4 |
2B002416 - VIS More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/1/img/155941.jpg)
5 |
2B004778 - CODEUR COMPTEUR KM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/5/8/img/109058.jpg)
6 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 1200 CAPONORD 2014>2016, 900-1200 DORSODURO 2016>, 900 SHIVER 2017>, 1000 TUONO 2011>/MOTO-GUZZI 1200 NORGE 2010>, STELVIO 2011> -B044280 More informationQuantity required : 1 |
|||||||||
|
7 |
AP8125773 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
|||||||||
|
8 |
AP8125777 - ROULEMENT More informationQuantity required : 2 |
|||||||||
|
9 |
978516 - ENTRETOISE ROULEMENTS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/4/img/172944.jpg)
10 |
2B007335 - SPOKE 3 5 More informationQuantity required : 36 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/5/img/172945.jpg)
11 |
2B007846 - NIPPLE More informationQuantity required : 36 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/9/8/img/50898.jpg)
12 |
AP8150491 - GOUJON More informationQuantity required : 36 |
|||||||||
|
13 |
2B009303 - FRONT WHEEL SPINDLE More informationQuantity required : 1 |
|||||||||
|
14 |
AP8125842 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
|||||||||
|
15 |
978498 - DISTANZIALE ESTERNO RUOTA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
16 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
17 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323 More informationQuantity required : 1 |
|||||||||
|
18 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
|||||||||
|
19 |
894704 - More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
20 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
|||||||||
|
21 |
1C001499 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/9/7/7/img/158977.jpg)
22 |
581957 - VIS More informationQuantity required : 1 |
|||||||||
|
23 |
859777 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.jpg)
24 |
AP8104728 - VALVOLA TUBELESS More informationQuantity required : 1 |
|||||||||
