Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

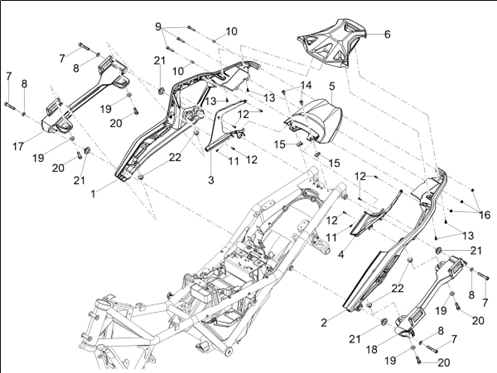

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_02.14.png)
1 |
2B011620 - RH PASSENGER HANDLE More informationQuantity required : 1 |
||||||
|
2 |
2B011621 - LH PASSENGER HANDLE More informationQuantity required : 1 |
||||||
|
3 |
2B011618 - RH INTERNAL HANDLE COVER More informationQuantity required : 1 |
||||||
|
4 |
2B011619 - LH INTERNAL HANDLE COVER More informationQuantity required : 1 |
||||||
|
5 |
2B005354 - COUVERCLE More informationQuantity required : 1 |
||||||
|
6 |
2B011617 - LUGGAGE CARRIER COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
AP8150169 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
8 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 4 |
||||||
|
9 |
GU98682330 - VIS M6X30 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
10 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
11 |
296141 - VIS More informationQuantity required : 2 |
||||||
|
12 |
1A003444 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
13 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
14 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
15 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
|
16 |
GU92630206 - ECROU M6X1 More informationQuantity required : 3 |
||||||
|
17 |
2B011427 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
18 |
2B011428 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
|
19 |
GU950053106 - WASHER 8.4X18X2 INOX AISI 304 More informationQuantity required : 4 |
||||||
|
20 |
B043044 - VIS More informationQuantity required : 4 |
||||||
|
21 |
2B012340 - DOUILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
22 |
AP8221128 - "DOUILLE EN ""T"" 8,5X10,7X12" More informationQuantity required : 4 |
