Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

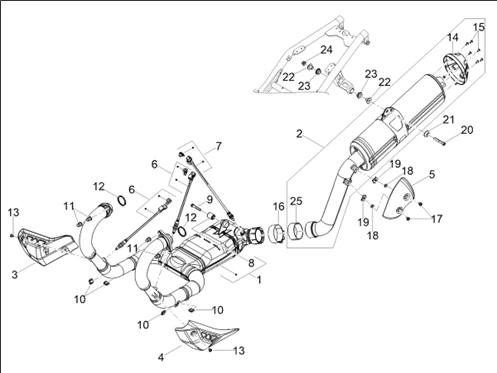

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.33.png)
1 |
2B011661 - EXHAUST PIPE More informationQuantity required : 1 |
||||||
|
2 |
2B011910 - MUFFLER More informationQuantity required : 1 |
||||||
|
3 |
2B011932 - RIGHT EXHAUST PIPE PROTECTION WITH IP More informationQuantity required : 1 |
||||||
|
4 |
2B011936 - LEFT EXHAUST PIPE PROTECTION WITH IP More informationQuantity required : 1 |
||||||
|
5 |
2B011984 - MUFFLER MANIFOLD PROTECTION More informationQuantity required : 1 |
||||||
|
6 |
1A024117 - SONDE LAMDA More informationQuantity required : 2 |
||||||
|
7 |
1A024934 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
8 |
00H02201731 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
9 |
AP8152291 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/6/3/img/174963.jpg)
10 |
2B007247 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/2/9/4/0/img/172940.jpg)
11 |
2B007821 - CAP NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
12 |
JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/0/6/1/img/98061.jpg)
13 |
SCREW - FOR EXHAUST PIPE PROTECTION (M6X10) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, 850 V9, V85, 1400 CALIFORNIA, ELDORADO -2B000215 More informationQuantity required : 2 |
||||||
|
14 |
2B012298 - REAR COVER More informationQuantity required : 1 |
||||||
|
15 |
2B007535 - TORX HEAD SCREW M5X10 A2-70 More informationQuantity required : 6 |
||||||
|
16 |
2B011911 - METAL PIPE CLAMP More informationQuantity required : 1 |
||||||
|
17 |
884043 - VITE TBEI FL M6X12 PREIMPREGNATA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/7/img/70637.jpg)
18 |
876879 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
19 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
20 |
2B004771 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
21 |
BUSH/WASHER FASTENING EXHAUST "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -AP8134378 More informationQuantity required : 1 |
||||||
|
22 |
AP8121332 - DOUILLE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
23 |
AP8144558 - GOMMINO SUPPORTO SILENZIATORE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
24 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
|
25 |
2B011893 - WIRE-MESH GASKET More informationQuantity required : 1 |
