Eclatés de véhicule - APRILIA SR 125 SR COMPACT GT 125 E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

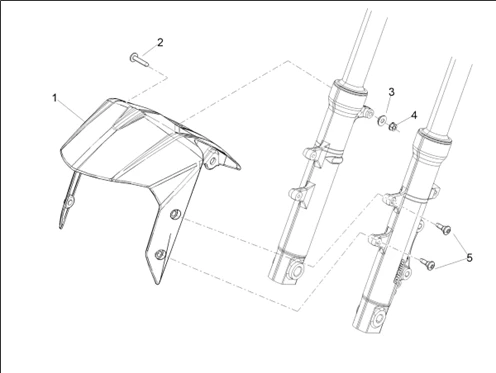

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1190/SR_COMPACT_GT_125_E5_ABS_2022_(EMEA)_02.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/8/4/img/195684.jpg)
1 |
GARDE-BOUE AVANT ORIGINE PIAGGIO APRILIA125 SR GT COMPACT E5 2021> -1B008112- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
2 |
VIS TORX (6X30) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179303- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/3/1/9/img/88319.jpg)
3 |
ENTRETOISE DE PHARE ORIGINE APRILIA SXR,SR GT -654301 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
4 |
ECROU BRIDE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -241936 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
5 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201- Plus d'informationsQuantité requise : 4 |
