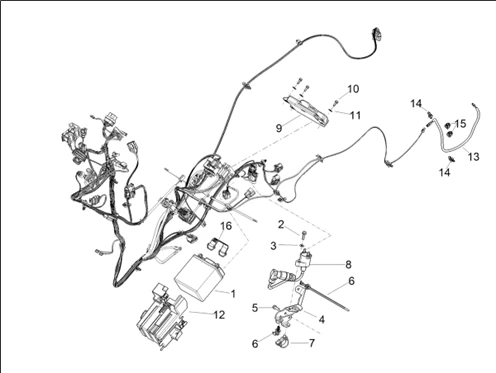

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1190/SR_COMPACT_GT_125_E5_ABS_2022_(EMEA)_11.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
1 |
BATTERIE 12V 6 AH YTX7L-BS ORIGINE PIAGGIO COMMUN A LA GAMME -584662 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/2/5/img/70425.jpg)
2 |
VIS BRIDE TH (5X20) ORIGINE PIAGGIO COMMUN A LA GAMME -872269 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.jpg)
3 |
RONDELLE A DENTS (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -012528 Plus d'informationsQuantité requise : 1 |
||||||
4 |
SUPOORT DE BOBINE HT ORIGINE PIAGGIO 125 MEDLEY, GTS 2021>/ SR GT COMPACT APRILIA 2021> -1A019404 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1A004277 - VIS M6X16 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
6 |
COLLIER SERRE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D001143- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
7 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMUN A LA GAMME -CM006903 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
1A019496 - BOBINE H.T. COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/7/img/203877.jpg)
9 |
CENTRALE INJECTION ELECTRONIQUE ORIGINE APRILIA 125/200 SR GT COMPACT 2021-2023 -CM301316- DEVICE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
10 |
VIS BRIDE TH (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -830061 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
11 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733 Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
1B008101 - BATTERY BOX Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
1D004071 - PIGTAIL FOR LICENCE PLATE LAMP Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
COLLIER SERRE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D001143- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
15 |
CLIPS ATTACHE FAISCEAU ORIGINE PIAGGIO COMMUN A LA GAMME -CM013203 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
16 |
COURROIE/SANGLE DE BATTERIE ORIGINE PIAGGIO COMMUN A LA GAMME -090854 Plus d'informationsQuantité requise : 1 |
