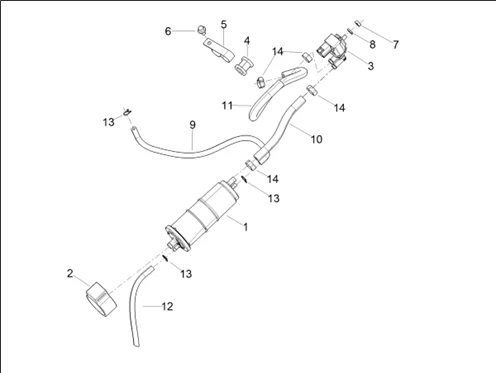

Réservoir : 09.02 SYS.RÉCUP.VAP.ESS.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1190/SR_COMPACT_GT_125_E5_ABS_2022_(EMEA)_09.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/3/3/img/174733.jpg)
1 |
CANISTER ORIGINE PIAGGIO 50-125 COMMUN A LA GAMME 2021>-1B002848 Plus d'informationsQuantité requise : 1 |
||||||
2 |
1B002849 PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/0/6/img/174306.jpg)
3 |
VALVE SOLENOIDE ORIGINE PIAGGIO COMMUN A LA GAMME -1B008603 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
VALVE SOLENOIDE ORIGINE PIAGGIO COMMUN A LA GAMME -1B008603 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1B009656 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
7 |
ECROU M6 ORIGINE PIAGGIO COMMUN A LA GAMME -020206- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
CM283452 - PIPE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
CM177923 - TUYAU SAE J30 R11-A O R12 1/4" L:1125 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
1B009660 - TUYAU COMPLET Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
CM283443 - TUYAU VAPEURS CARBURANT Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
CM283701 COLLIER Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
14 |
COLLIER (14.5MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001914 Plus d'informationsQuantité requise : 3 |
