Eclatés de véhicule - APRILIA SR 125 SR COMPACT GT 125 E5 ABS 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

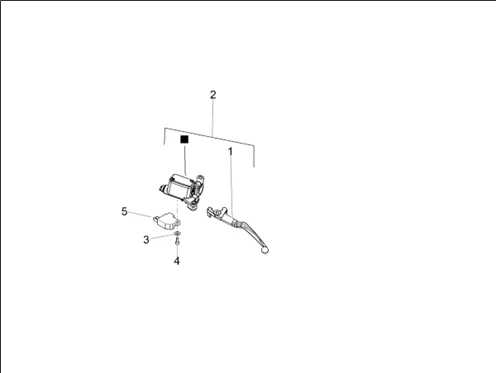

Système de freinage : 06.03 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1190/SR_COMPACT_GT_125_E5_ABS_2022_(EMEA)_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/4/7/img/174347.jpg)
1 |
LEVIER DE FREIN GAUCHE ORIGINE PIAGGIO 300-400 BEVERLY ABS 2021>/125 SR COMPACT GT APRILIA 2021> -1C004981- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/4/4/img/195844.jpg)
2 |
MAITRE CYLINDRE DE FREIN GAUCHE ORIGINE APRILIA 125 SR GT COMPACT 2021> -CM305505 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
3 |
RONDELLE PLATE (4.3X8X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -003054 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
4 |
VIS BTR (4X10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152043- Plus d'informationsQuantité requise : 1 |
||||||
5 |
1D003113 LEFT PUSH BUTTON Plus d'informationsQuantité requise : 1 |
