Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

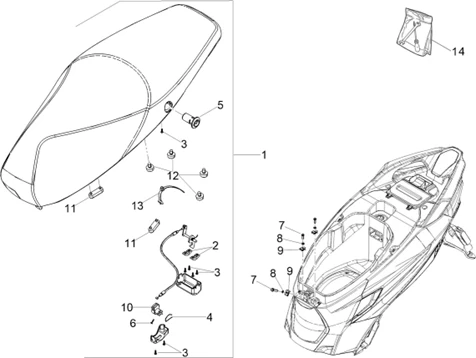

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_02.39.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/4/6/img/178546.jpg)
1 |
SELLE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1B008261000C1 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
2 |
PONTET DOIGT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -296743 Plus d'informationsQuantité requise : 2 |
||||||
3 |
674162 SCREW (CYLINDER HEAD) Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/3/img/152833.jpg)
4 |
RESSORT BARILLET SELLE ORIGINE PIAGGIO 50 TYPHOON, 50 SR MOTARD, SXR 2018> -674312- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/5/4/7/img/178547.jpg)
5 |
SUPPORT DE SERRURE DE SELLE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -674311- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/8/3/5/img/152835.jpg)
6 |
VIS AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -674163 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
7 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -018639- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
8 |
RONDELLE ELASTIQUE (6,4X11,8X1) ORIGINE PIAGGIO COMMUN A LA GAMME -016406 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/4/9/8/img/204498.jpg)
10 |
EXCENTRIQUE SELLE ORIGINE APRILIA 50 SXR 2021> -674306- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
11 |
TAMPON SELLE ORIGINE PIAGGIO COMMIN A LA GAMME -296456 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
12 |
TAMPON DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -577492 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
13 |
COLLIER ORIGINE PIAGGIO COMMUN A LA GAMME -298729 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
1C002659 - TROUSSE A OUTILS Plus d'informationsQuantité requise : 1 |
