Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

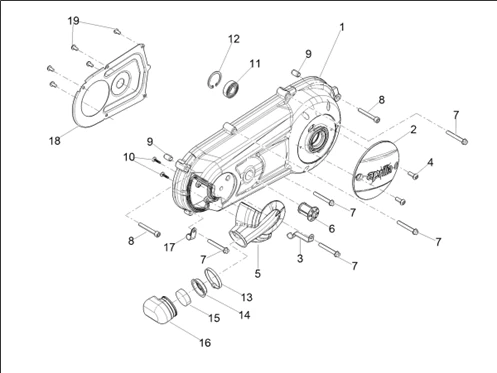

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_01.15.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/1/9/7/3/img/181973.jpg)
1 |
COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 50 SXR APRILIA 2021> -SP1A019349- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/5/img/164085.jpg)
2 |
CACHE DU COUVERCLE DE TRANSMISSION ORIGINE APRILIA 50 SXR 2021> -1A005843- Plus d'informationsQuantité requise : 1 |
||||||
3 |
4A000029 TRANSMISSION BRAKE CLAMP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/2/img/164082.jpg)
4 |
VIS TORX (5X13) ORIGINE PIAGGIO COMMUN A LA GAMME -1A008521 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/0/img/164080.jpg)
5 |
PROTECTION REFROIDISSEMENT CARTER TRANSMISSION ORIGINE APRILIA 50 SXR 2021> -B013524- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/4/3/img/178643.jpg)
6 |
BOUCHON COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1A019254 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/8/3/img/164083.jpg)
7 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003060 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/4/4/img/178644.jpg)
8 |
1A019583 - ANTITAMPERING SCREW Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
B015592 CLAVETTE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
B018421 - VIS Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/0/7/5/img/164075.jpg)
11 |
ROULEMENT (15X32X9) COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 50 SXR APRILIA 2021> -B018304- Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
1A006307 - CIRCLIPS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
13 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/4/5/img/178645.jpg)
14 |
RONDELLE MANCHON AIR ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1A019371 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/4/6/img/178646.jpg)
15 |
FILTRE MANCHON CARTER ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1A019372 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/4/7/img/178647.jpg)
16 |
MANCHON AIR CARTER ORIGINE PIAGGIO 50SXR APRILIA 2021> -1A019362 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
4A000028 CLIP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/0/5/8/img/166058.jpg)
18 |
DEVIATEUR AIR CARTER TRANSMISSION ORIGINE APRILIA 50 SXR 2021> -B013685 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
1A000612 VIS Plus d'informationsQuantité requise : 5 |
