Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

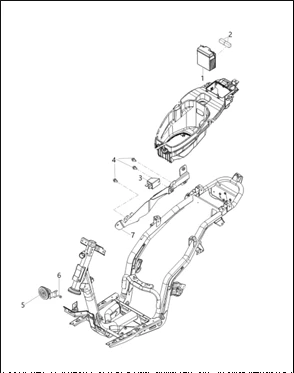

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/5/img/67305.jpg)
1 |
BATTERIE 12V 6 AH YTX7L-BS ORIGINE PIAGGIO COMMUN A LA GAMME -584662 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/1/img/67281.jpg)
2 |
TAMPON MOUSSE ORIGINE PIAGGIO COMMUN A LA GAMME -583310 Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/1/0/4/img/166104.jpg)
3 |
RELAIS 12V-70A ORIGINE PIAGGIO 50 TYPHOON 2018>/ SR, SXR APRILIA 2018> -680154 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
4 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/2/5/4/img/164254.jpg)
5 |
AVERTISSEUR/KLAXON ORIGINE APRILIA 50 SXR 2021> -CM087614 Plus d'informationsQuantité requise : 1 |
|||||||||
6 |
434541 - VIS Plus d'informationsQuantité requise : 1 |
|||||||||
|
7 |
1B008393 - ELECTRIC DEVICE BRACKET WITH IP Plus d'informationsQuantité requise : 1 |
|||||||||
