Eclatés de véhicule - APRILIA SXR 50 50 4T 3V E5 HE NEW COMFORT MY2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

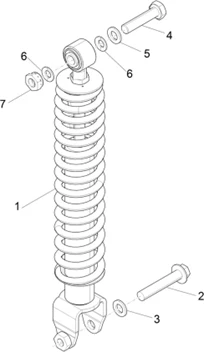

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1315/SXR_50_4T_3V_E5_HE_NEW_COMFORT_MY2025_(EMEA)_04.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/5/2/img/178652.jpg)
1 |
AMORTISSEUR ARRIERE ORIGINE PIAGGIO 50 SXR APRILIA 2021> -1C005077 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
2 |
VIS BRIDE TH (10X55) FIXATION AMORTISSEUR ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -268158- Plus d'informationsQuantité requise : 1 |
||||||
3 |
B015320 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/0/img/114680.jpg)
4 |
VIS TH (10X45) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B024614 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
B015321 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
B015320 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440- Plus d'informationsQuantité requise : 1 |
