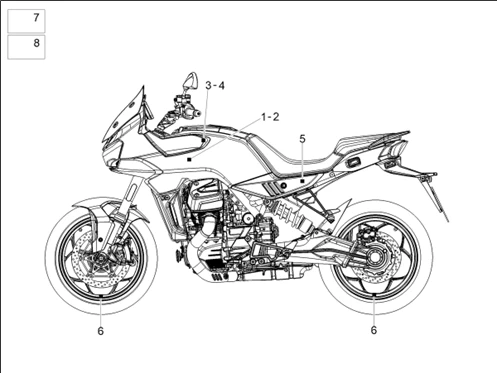

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1310/V100_Mandello_E5_ABS_2024_(EMEA)_02.19.png)
1 |
2H006598 - TARGHETTA "AQUILA" DX Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2H006599 - PLAQUE "AQUILA" SX Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2H006530 - STICKER AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2H006531 - STICKER AILE G Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
2H006532 - ÉTIQUETTE D.-G. Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
2H005310 - GUZZI WHEELS STICKERS Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B011060 - TIRES PRESSURE STICKER Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/1/0/3/img/156103.jpg)
8 |
AUTOCOLLANT/STICKER/DECOR (E5-E10) ORIGINE PIAGGIO COMMUN A LA GAMME -2B0059385 Plus d'informationsQuantité requise : 1 |
