Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

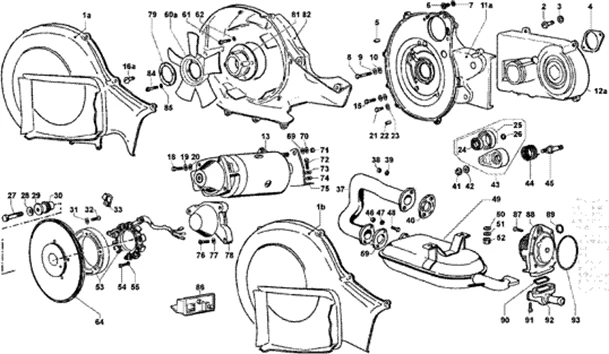

Moteur : T5 COIFFE REFROIDISSEMENT - DEMARREUR - TUYAU DECHARGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T5.PNG)
1 |
L2569704 - ELEMENT DE TRANSPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
2 |
018553 - VIS More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
006966 - RONDELLE S00696600 More informationQuantity required : 5 |
||||||
|
4 |
224699 - JOINT More informationQuantity required : 1 |
||||||
|
5 |
168409 - GRANO DI RIFER More informationQuantity required : 1 |
||||||
|
6 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
6 |
1A003111 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
7 |
006966 - RONDELLE S00696600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/4/img/65444.jpg)
8 |
018583 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
|
11 |
SUPPORT |
||||||
|
12 |
COURROIE |
||||||
|
13 |
292083 - MOTEUR DÉMARREUR ATD-T1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
15 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921- More informationQuantity required : 1 |
||||||
|
16 |
015760 - VIS S01577400 More informationQuantity required : 9 |
||||||
|
18 |
030074 - BOULON S03007400 More informationQuantity required : 3 |
||||||
|
19 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
|
20 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
|
21 |
015760 - VIS S01577400 More informationQuantity required : 2 |
||||||
|
22 |
168409 - GRANO DI RIFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
23 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
24 |
ASTUCCIO A RUL |
||||||
|
25 |
PULLEY-FOR BELT TENSIONER "PIAGGIO GENUINE PART" APE CALESSINO, PM601, DIESEL -830717 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
26 |
006412 - CIRCLIPS S00641200 More informationQuantity required : 1 |
||||||
|
27 |
232187 - VIS More informationQuantity required : 1 |
||||||
|
28 |
L5715097 - RESSORT More informationQuantity required : 1 |
||||||
|
29 |
246013 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
223492 - CONO More informationQuantity required : 1 |
||||||
|
31 |
006976 - RONDELLE S00697600 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
32 |
031087 - ECROU S03108700 More informationQuantity required : 5 |
||||||
|
33 |
826676 - MANCETTA More informationQuantity required : 1 |
||||||
|
37 |
L9543113 - TUYAU ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/8/img/63758.jpg)
38 |
001564 - ECROU S00156400 More informationQuantity required : 2 |
||||||
|
39 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/9/img/113939.jpg)
40 |
430690 - JOINT ECHAPPEMENT (CYLINDRE) ATD-1T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
41 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
|
42 |
L7701212 - RONDELLE More informationQuantity required : 1 |
||||||
|
43 |
L4110034 - PLAQUE More informationQuantity required : 1 |
||||||
|
44 |
L5801609 - RESSORT More informationQuantity required : 1 |
||||||
|
45 |
L6231234 - PIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
46 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
|
47 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
||||||
|
48 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
|
49 |
ECHAPPEMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
50 |
002383 - RONDELLE More informationQuantity required : 2 |
||||||
|
51 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
|
52 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
|
53 |
L1157344 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
54 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
55 |
016405 - RONDELLE S01640500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/4/img/113934.jpg)
59 |
430689 - JOINT ECHAPPEMENT (ECHAPPEMENT) ADT-1T More informationQuantity required : 1 |
||||||
|
60 |
L9718299 - VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
61 |
709674 - VIS More informationQuantity required : 5 |
||||||
|
62 |
006976 - RONDELLE S00697600 More informationQuantity required : 5 |
||||||
|
64 |
L9881376 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
69 |
013755 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
70 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
71 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
72 |
031091 - VIS More informationQuantity required : 2 |
||||||
|
73 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
74 |
006125 - RONDELLE S00612500 More informationQuantity required : 2 |
||||||
|
75 |
292092 - SUPPORT More informationQuantity required : 1 |
||||||
|
76 |
015760 - VIS S01577400 More informationQuantity required : 3 |
||||||
|
77 |
006966 - RONDELLE S00696600 More informationQuantity required : 3 |
||||||
|
78 |
830091 - PROTECTION More informationQuantity required : 1 |
||||||
|
79 |
832737 - More informationQuantity required : 1 |
||||||
|
81 |
832736 - SUPPORT More informationQuantity required : 1 |
||||||
|
82 |
L2569699 - ELEMENT CONV. More informationQuantity required : 1 |
||||||
|
84 |
709674 - VIS More informationQuantity required : 4 |
||||||
|
85 |
006976 - RONDELLE S00697600 More informationQuantity required : 4 |
||||||
|
86 |
L2193202 - RELAIS PRECHAUFFAGE More informationQuantity required : 1 |
||||||
|
87 |
411213 - VIS More informationQuantity required : 4 |
||||||
|
88 |
L6584480 - CORPS DE ROTOR More informationQuantity required : 1 |
||||||
|
89 |
L4775603 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/2/5/img/110725.jpg)
90 |
L4775596 - O-RING More informationQuantity required : 1 |
||||||
|
91 |
411213 - VIS More informationQuantity required : 2 |
||||||
|
92 |
RACCORD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/0/0/img/111300.jpg)
93 |
L4775595 - JOINT O-RING More informationQuantity required : 1 |
