Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

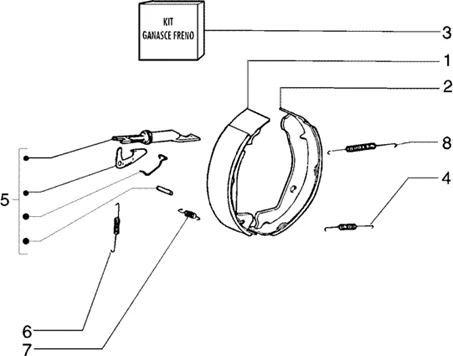

Roues : T43 MÂCHOIRES FREIN AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/9/3/img/117993.jpg)
1 |
REAR SHOE BRAKE DROITE "PIAGGIO GENUINE PART" APE TM703 -568377 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/7/6/img/117276.jpg)
1 |
REAR SHOE BRAKE GAUCHE "PIAGGIO GENUINE PART" APE TM703 -568379 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/8/img/117428.jpg)
2 |
REAR/FRONT SHOE BRAKE "PIAGGIO GENUINE PART" APE, CARGO (SOLD PER UNIT) -568372 More informationQuantity required : 2 |
||||||
3 |
154991 - SERIE MACHOIRE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/7/img/111637.jpg)
4 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -178750 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
5 |
644326 - REGLAGE AUT AR AVT G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/2/img/116452.jpg)
5 |
644327 - REGLAGE AUT AR G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
6 |
178808 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/7/img/111587.jpg)
7 |
225549 - RESSORT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
8 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038 More informationQuantity required : 2 |
