Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

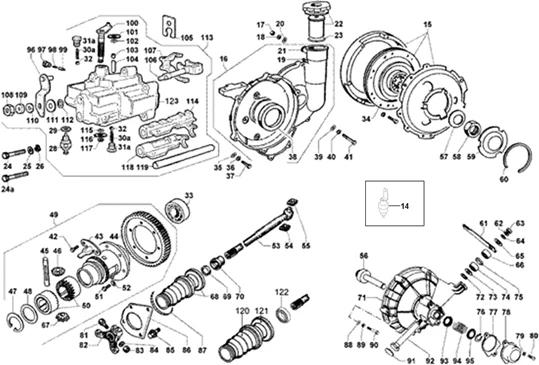

Moteur : T9 BOITIER CHANGEMENT - DIFFERENTIEL - DEMI-AXES - EMBRAYAGE VERSION À VITESSES
Boitier changement - differentiel - demi-axes - embrayage version à vitesses
Search
L7195138 - INTERUPTEUR MARCHE ARRIERE ATD

14
P2R reference P2R reference 113383
Maker reference Maker reference L7195138

L7195138 - INTERUPTEUR MARCHE ARRIERE ATD

More information

Quantity required : 1

432140 - EMBRAYAGE ATD

15
P2R reference P2R reference 122499
Maker reference Maker reference 432140

432140 - EMBRAYAGE ATD

More information

Quantity required : 1

830744 - CARTER

16
P2R reference P2R reference 120835
Maker reference Maker reference 830744

830744 - CARTER

More information

Quantity required : 1

020106 - ECROU S02010600

17
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

020106 - ECROU S02010600

More information

Quantity required : 1

016406 - RONDELLE S01640600

18
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 1

004489 - GOUJON S00448900

19
P2R reference P2R reference 63791
Maker reference Maker reference 0044895

004489 - GOUJON S00448900

More information

Quantity required : 1

003056 - RONDELLE

20
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 1

830626 - TUYAU

21
P2R reference P2R reference 113614
Maker reference Maker reference 830626

830626 - TUYAU

More information

Quantity required : 1

L9032089 - BOUCHON HUILE ATD

22
P2R reference P2R reference 116164
Maker reference Maker reference L9032089

L9032089 - BOUCHON HUILE ATD

More information

Quantity required : 1

L1200349 - JOINT

23
P2R reference P2R reference 113240
Maker reference Maker reference L1200349

L1200349 - JOINT

More information

Quantity required : 1

018583 - VIS

24
P2R reference P2R reference 65444
Maker reference Maker reference 0185835

018583 - VIS

More information

Quantity required : 1

844483 - VIS

24
P2R reference P2R reference 69321
Maker reference Maker reference 844483

844483 - VIS

More information

Quantity required : 5

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

25
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 5

003058 - RONDELLE S00305800

26
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 5

250324 - INTERUPTEUR MARCHE ARRIERE ATD

28
P2R reference P2R reference 65999
Maker reference Maker reference 250324

250324 - INTERUPTEUR MARCHE ARRIERE ATD

More information

Quantity required : 1

DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

29
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

More information

Quantity required : 1

223218 - RESSORT

30
P2R reference P2R reference 111368
Maker reference Maker reference 223218

223218 - RESSORT

More information

Quantity required : 2

Logement de bille

31
P2R reference P2R reference
Maker reference Maker reference 169512

Logement de bille

006380 - BILLE S00638000

32
P2R reference P2R reference 110226
Maker reference Maker reference 0063805

006380 - BILLE S00638000

More information

Quantity required : 1

ROULEMENT

33
P2R reference P2R reference
Maker reference Maker reference 826566

ROULEMENT

493851 - DISQUE D'EMBRAYAGE

34
P2R reference P2R reference 120516
Maker reference Maker reference 493851

493851 - DISQUE D'EMBRAYAGE

More information

Quantity required : 1

003056 - RONDELLE

35
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 3

016406 - RONDELLE S01640600

36
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 3

830784 - VIS

37
P2R reference P2R reference 110033
Maker reference Maker reference 830784

830784 - VIS

More information

Quantity required : 4

431240 - BOURRAGE ATD-T1

38
P2R reference P2R reference 116888
Maker reference Maker reference 431240

431240 - BOURRAGE ATD-T1

More information

Quantity required : 1

003056 - RONDELLE

39
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 7

016406 - RONDELLE S01640600

40
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 7

030054 - VIS S03005400

41
P2R reference P2R reference 65608
Maker reference Maker reference 0300545

030054 - VIS S03005400

More information

Quantity required : 6

168065 - VIS

42
P2R reference P2R reference 111046
Maker reference Maker reference 168065

168065 - VIS

More information

Quantity required : 2

829572 - SQUADRETTA

43
P2R reference P2R reference 113615
Maker reference Maker reference 829572

829572 - SQUADRETTA

More information

Quantity required : 2

493852 - COURONNE

44
P2R reference P2R reference 122027
Maker reference Maker reference 493852

493852 - COURONNE

More information

Quantity required : 1

1680631 - PIVOT

45
P2R reference P2R reference 116889
Maker reference Maker reference 1680631

1680631 - PIVOT

More information

Quantity required : 1

1326615 - SATELLITE

46
P2R reference P2R reference 119360
Maker reference Maker reference 1326615

1326615 - SATELLITE

More information

Quantity required : 1

006667 - CIRCLIPS

47
P2R reference P2R reference 111229
Maker reference Maker reference 0066675

006667 - CIRCLIPS

More information

Quantity required : 1

132665 -

48
P2R reference P2R reference 111541
Maker reference Maker reference 132665

132665 -

More information

Quantity required : 1

493853 - SCATOLA DIFFER

49
P2R reference P2R reference 123441
Maker reference Maker reference 493853

493853 - SCATOLA DIFFER

More information

Quantity required : 1

L4990191 - PIGNON SOLEIL

50
P2R reference P2R reference 120707
Maker reference Maker reference L4990191

L4990191 - PIGNON SOLEIL

More information

Quantity required : 2

168065 - VIS

51
P2R reference P2R reference 111046
Maker reference Maker reference 168065

168065 - VIS

More information

Quantity required : 4

VIS M10X18

52
P2R reference P2R reference
Maker reference Maker reference L1780150

VIS M10X18

L8050013 - DEMI-AXLE

53
P2R reference P2R reference 120706
Maker reference Maker reference L8050013

L8050013 - DEMI-AXLE

More information

Quantity required : 2

1680614 - ECROU CARDAN ATD

54
P2R reference P2R reference 118690
Maker reference Maker reference 1680614

1680614 - ECROU CARDAN ATD

More information

Quantity required : 2

1680614 - ECROU CARDAN ATD

55
P2R reference P2R reference 118690
Maker reference Maker reference 1680614

1680614 - ECROU CARDAN ATD

More information

Quantity required : 2

2387246 - GRUPPO REGGISP

56
P2R reference P2R reference 121737
Maker reference Maker reference 2387246

2387246 - GRUPPO REGGISP

More information

Quantity required : 1

L48965530 - GRUPPO REGGISPINTA

56
P2R reference P2R reference 120843
Maker reference Maker reference L48965530

L48965530 - GRUPPO REGGISPINTA

More information

Quantity required : 1

168207 - RESSORT

57
P2R reference P2R reference 112728
Maker reference Maker reference 168207

168207 - RESSORT

More information

Quantity required : 1

223803 - ECROU

58
P2R reference P2R reference 134768
Maker reference Maker reference 223803

223803 - ECROU

More information

Quantity required : 1

245344 - PIATTELLO

59
P2R reference P2R reference 117378
Maker reference Maker reference 245344

245344 - PIATTELLO

More information

Quantity required : 1

245313 - CIRCLIPS

60
P2R reference P2R reference 113368
Maker reference Maker reference 245313

245313 - CIRCLIPS

More information

Quantity required : 1

L5271191 - LEVIER D'EMBRAYAGE

61
P2R reference P2R reference 114110
Maker reference Maker reference L5271191

L5271191 - LEVIER D'EMBRAYAGE

More information

Quantity required : 1

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

62
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 1

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

63
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1

003058 - RONDELLE S00305800

64
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 1

L7352055 - Rondelle

65
P2R reference P2R reference 151187
Maker reference Maker reference L7352055

L7352055 - RONDELLE

More information

Quantity required : 1

231290 - DOUILLE

66
P2R reference P2R reference 65964
Maker reference Maker reference 231290

231290 - DOUILLE

More information

Quantity required : 1

1326615 - SATELLITE

67
P2R reference P2R reference 119360
Maker reference Maker reference 1326615

1326615 - SATELLITE

More information

Quantity required : 1

L2920196 - CAOUTCHOUC AXE

68
P2R reference P2R reference 117320
Maker reference Maker reference L2920196

L2920196 - CAOUTCHOUC AXE

More information

Quantity required : 1

431038 - BOURRAGE AXE ATD

69
P2R reference P2R reference 117277
Maker reference Maker reference 431038

431038 - BOURRAGE AXE ATD

More information

Quantity required : 2

223725 - BAGUE ROULEMENT AXE ATD

70
P2R reference P2R reference 120584
Maker reference Maker reference 223725

223725 - BAGUE ROULEMENT AXE ATD

More information

Quantity required : 2

L2630002 - COUVERCLE EMBRAYAGE

71
P2R reference P2R reference 122193
Maker reference Maker reference L2630002

L2630002 - COUVERCLE EMBRAYAGE

More information

Quantity required : 1

COUVERCLE

71
P2R reference P2R reference
Maker reference Maker reference 850630

COUVERCLE

006415 - ANNEAU ELAST. S00641500

72
P2R reference P2R reference 63813
Maker reference Maker reference 0064155

006415 - ANNEAU ELAST. S00641500

More information

Quantity required : 1

L7352056 - RONDELLE

73
P2R reference P2R reference 151156
Maker reference Maker reference L7352056

L7352056 - RONDELLE

More information

Quantity required : 1

231290 - DOUILLE

74
P2R reference P2R reference 65964
Maker reference Maker reference 231290

231290 - DOUILLE

More information

Quantity required : 1

285591 - BAGUE ETANCHEITEE

75
P2R reference P2R reference 66150
Maker reference Maker reference 285591

285591 - BAGUE ETANCHEITEE

More information

Quantity required : 1

006415 - ANNEAU ELAST. S00641500

76
P2R reference P2R reference 63813
Maker reference Maker reference 0064155

006415 - ANNEAU ELAST. S00641500

More information

Quantity required : 1

JOINT

77
P2R reference P2R reference
Maker reference Maker reference 238735

JOINT

238736 - BOUCHON

78
P2R reference P2R reference 113363
Maker reference Maker reference 238736

238736 - BOUCHON

More information

Quantity required : 1

016406 - RONDELLE S01640600

79
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 2

1A003108 - VIS

80
P2R reference P2R reference 109085
Maker reference Maker reference 0083755

1A003108 - VIS

More information

Quantity required : 2

1A003108 - VIS

80
P2R reference P2R reference 109085
Maker reference Maker reference 1A003108

1A003108 - VIS

More information

Quantity required : 2

SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578

81
P2R reference P2R reference 65382
Maker reference Maker reference 0155785

SCREW (10X45) "PIAGGIO GENUINE PARTS" COMMON TO ALL THE RANGE -015578

More information

Quantity required : 2

2681924 - ETOILE

82
P2R reference P2R reference 119736
Maker reference Maker reference 2681924

2681924 - ETOILE

More information

Quantity required : 2

015252 - ECROU S01525200

83
P2R reference P2R reference 65377
Maker reference Maker reference 0152525

015252 - ECROU S01525200

More information

Quantity required : 2

016410 - ANNEAU

84
P2R reference P2R reference 65419
Maker reference Maker reference 0164105

016410 - ANNEAU

More information

Quantity required : 2

830784 - VIS

85
P2R reference P2R reference 110033
Maker reference Maker reference 830784

830784 - VIS

More information

Quantity required : 8

829566 - BRIDE

86
P2R reference P2R reference 113810
Maker reference Maker reference 829566

829566 - BRIDE

More information

Quantity required : 2

224344 - COLLIER

87
P2R reference P2R reference 111038
Maker reference Maker reference 224344

224344 - COLLIER

More information

Quantity required : 2

003056 - RONDELLE

88
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 6

016406 - RONDELLE S01640600

89
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

016406 - RONDELLE S01640600

More information

Quantity required : 6

030057 - VIS

90
P2R reference P2R reference 65609
Maker reference Maker reference 0300575

030057 - VIS

More information

Quantity required : 6

238731 - BOUCHON

91
P2R reference P2R reference 112214
Maker reference Maker reference 238731

238731 - BOUCHON

More information

Quantity required : 1

L1015075 - ALBERINO

92
P2R reference P2R reference 116588
Maker reference Maker reference L1015075

L1015075 - ALBERINO

More information

Quantity required : 1

CUVETTE ATD-T1

93
P2R reference P2R reference
Maker reference Maker reference 238732

CUVETTE ATD-T1

RESSORT

94
P2R reference P2R reference
Maker reference Maker reference 238734

RESSORT

238733 - SCODELLINO SUP

95
P2R reference P2R reference 134645
Maker reference Maker reference 238733

238733 - SCODELLINO SUP

More information

Quantity required : 1

Levier

96
P2R reference P2R reference
Maker reference Maker reference 612954

Levier

L1862156 - ECROU

97
P2R reference P2R reference 112748
Maker reference Maker reference L1862156

L1862156 - ECROU

More information

Quantity required : 1

L5695010 - RESSORT

98
P2R reference P2R reference 112637
Maker reference Maker reference L5695010

L5695010 - RESSORT

More information

Quantity required : 1

L7200728 - AXE

99
P2R reference P2R reference 142796
Maker reference Maker reference L7200728

L7200728 - AXE

More information

Quantity required : 1

L1034005 - ARBRE INN.FORQUE

100
P2R reference P2R reference 116240
Maker reference Maker reference L1034005

L1034005 - ARBRE INN.FORQUE

More information

Quantity required : 1

825643 - RONDELLE

101
P2R reference P2R reference 68556
Maker reference Maker reference 825643

825643 - RONDELLE

More information

Quantity required : 1

L1200348 - JOINT

102
P2R reference P2R reference 112198
Maker reference Maker reference L1200348

L1200348 - JOINT

More information

Quantity required : 1

289896 - BOUCHON

103
P2R reference P2R reference 115601
Maker reference Maker reference 289896

289896 - BOUCHON

More information

Quantity required : 1

L7200722 - PUNTALINO

104
P2R reference P2R reference 111932
Maker reference Maker reference L7200722

L7200722 - PUNTALINO

More information

Quantity required : 1

493858 - PLAQUE

105
P2R reference P2R reference 110139
Maker reference Maker reference 493858

493858 - PLAQUE

More information

Quantity required : 1

L5201260 - LEVIER

106
P2R reference P2R reference 114574
Maker reference Maker reference L5201260

L5201260 - LEVIER

More information

Quantity required : 1

L3960019 - TUBE CHANGEMENT DE VITESSE

107
P2R reference P2R reference 120522
Maker reference Maker reference L3960019

L3960019 - TUBE CHANGEMENT DE VITESSE

More information

Quantity required : 1

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

108
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

109
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 1

003058 - RONDELLE S00305800

110
P2R reference P2R reference 63779
Maker reference Maker reference 0030585

003058 - RONDELLE S00305800

More information

Quantity required : 1

RONDELLE

111
P2R reference P2R reference
Maker reference Maker reference 826561

RONDELLE

289899 - JOINT

112
P2R reference P2R reference 110559
Maker reference Maker reference 289899

289899 - JOINT

More information

Quantity required : 1

L7865127A - BOITE DE VITESSE

113
P2R reference P2R reference 124206
Maker reference Maker reference L7865127A

L7865127A - BOITE DE VITESSE

More information

Quantity required : 1

L5375026 - MANCHON INSERTION MANCHES 3EME - 4EME ET

114
P2R reference P2R reference 119718
Maker reference Maker reference L5375026

L5375026 - MANCHON INSERTION MANCHES 3EME - 4EME ET

More information

Quantity required : 1

O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035

115
P2R reference P2R reference 111629
Maker reference Maker reference 224035

O'RING GASKET - FOR WATER PUMP OR GEARBOX "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO APE -224035

More information

Quantity required : 1

825643 - RONDELLE

116
P2R reference P2R reference 68556
Maker reference Maker reference 825643

825643 - RONDELLE

More information

Quantity required : 1

006409 - CIRCLIPS

117
P2R reference P2R reference 63809
Maker reference Maker reference 0064095

006409 - CIRCLIPS

More information

Quantity required : 1

L5375027 - MANCHON INSERTION MANCHES 1ER - 2EME ET

118
P2R reference P2R reference 121401
Maker reference Maker reference L5375027

L5375027 - MANCHON INSERTION MANCHES 1ER - 2EME ET

More information

Quantity required : 1

289915 -

119
P2R reference P2R reference 121112
Maker reference Maker reference 289915

289915 -

More information

Quantity required : 2

CAOUTCHOUC AXE

120
P2R reference P2R reference
Maker reference Maker reference 850237

CAOUTCHOUC AXE

L2920189 - CAOUTCHOUC AXE

121
P2R reference P2R reference 115592
Maker reference Maker reference L2920189

L2920189 - CAOUTCHOUC AXE

More information

Quantity required : 1

L3010260 - CAGE A ROUL.

122
P2R reference P2R reference 116650
Maker reference Maker reference L3010260

L3010260 - CAGE A ROUL.

More information

Quantity required : 1

BOITE

123
P2R reference P2R reference
Maker reference Maker reference 850625

BOITE

832668 - SCATOLA COM.CAMBIO

123
P2R reference P2R reference 121787
Maker reference Maker reference 832668

832668 - SCATOLA COM.CAMBIO

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
