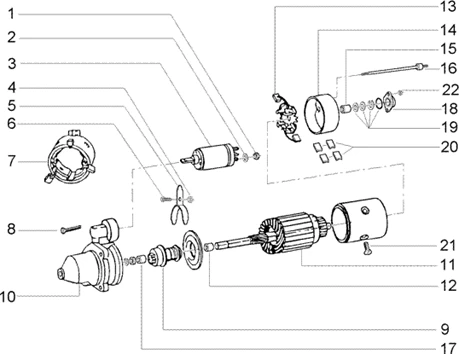

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 0 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Moteur : T6 DEMARREUR ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T6.PNG)
1 |
ECROU |
||||||
|
2 |
RONDELLE |
||||||
|
3 |
498490 - RELE' ** More informationQuantity required : 1 |
||||||
|
4 |
ECROU |
||||||
|
5 |
493318 - LEVIER More informationQuantity required : 1 |
||||||
|
6 |
VIS |
||||||
|
7 |
498492 - CARCASSA ** More informationQuantity required : 1 |
||||||
|
8 |
Vis |
||||||
|
9 |
498477 - RUOTA LIBER** More informationQuantity required : 1 |
||||||
|
10 |
Planétaire |
||||||
|
11 |
292083 - MOTEUR DÉMARREUR ATD-T1 More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
498491 - P/TASPAZZ. ** More informationQuantity required : 1 |
||||||
|
14 |
SUPPORTO ** |
||||||
|
15 |
ROULEMENT |
||||||
|
16 |
VIS |
||||||
|
17 |
MOYEU |
||||||
|
18 |
SUPPORTO * |
||||||
|
19 |
COMP.INDOTT** |
||||||
|
20 |
SERIE BALAIS |
||||||
|
21 |
VIS |
||||||
|
22 |
|
