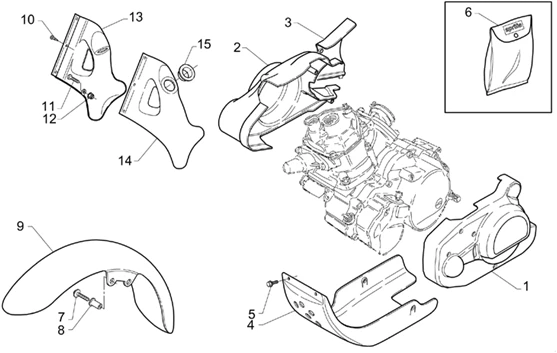

Chassis : 28.04 CARROSSERIE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_28.04.PNG)
1 |
Couvercle embrayage, alu |
||||||
|
2 |
Carter volant alu |
||||||
|
3 |
Carter pignon, alu |
||||||
|
4 |
Cache-carter brut; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
5 |
AP8152272 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
6 |
Trousse à outils |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
8 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 4 |
||||||
|
9 |
Garde-boue AV g m; |
||||||
|
9 |
Garde-boue AV cuivre; |
||||||
|
9 |
Garde-boue AV b sid.; |
||||||
|
9 |
G/BOUE AVANT ROUGE |
||||||
|
9 |
G/BOUE AVANT AZUR |
||||||
|
10 |
AP8150371 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
11 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
12 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
13 |
Couvre-châssis D, gris m; |
||||||
|
13 |
Couvre-châssis D, bleu; |
||||||
|
13 |
Couvre-châssis D, cuivre; |
||||||
|
13 |
Couvre-châssis D, noir; |
||||||
|
14 |
Couvre-châssis G, gris m; |
||||||
|
14 |
Couvre-châssis G, bleu; |
||||||
|
14 |
Couvre-châssis G, cuivre; |
||||||
|
14 |
Couvre-châssis G, noir; |
||||||
|
15 |
Bouchon |
