Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

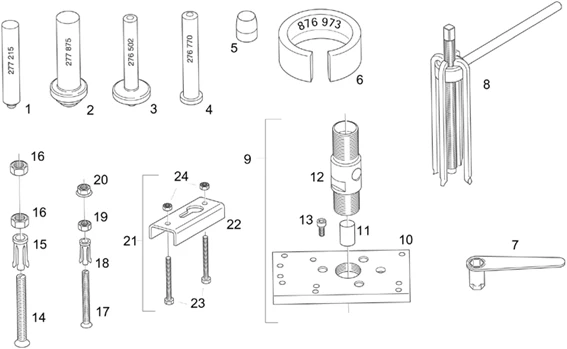

Outillage special : 31.28 OUTILS RÉPARATION I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_31.28.PNG)
1 |
Tampon montage |
||||||
|
2 |
Tampon montage complet; |
||||||
|
3 |
Tampon montage complet |
||||||
|
4 |
Tampon montage complet |
||||||
|
5 |
AP0277970 - DOUILLE GUIDAGE; More informationQuantity required : 1 |
||||||
|
6 |
Collier de serrage |
||||||
|
7 |
AP0276041 - CHIAVE FRIZIONE 11MM More informationQuantity required : 1 |
||||||
|
8 |
AP0277180 - KIT EXTRACT. ROUL. More informationQuantity required : 1 |
||||||
|
9 |
AP0277455 - PLATEAU EXTRACTEUR More informationQuantity required : 1 |
||||||
|
10 |
Plateau extracteur |
||||||
|
11 |
Gaine |
||||||
|
12 |
Vis extracteur |
||||||
|
13 |
AP0241236 - VIS More informationQuantity required : 4 |
||||||
|
14 |
Tige filetée |
||||||
|
15 |
AP0276360 - MANCHON EXTRACTEUR More informationQuantity required : 1 |
||||||
|
16 |
AP0242091 - ECROU More informationQuantity required : 2 |
||||||
|
17 |
Tige filetée |
||||||
|
18 |
Douille fendue |
||||||
|
19 |
AP0242209 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
Ecrou |
||||||
|
21 |
Extract. guillot. cpl |
||||||
|
22 |
Extract. guillot. cpl |
||||||
|
23 |
Vis |
||||||
|
24 |
AP0242211 - ECROU More informationQuantity required : 2 |
