Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

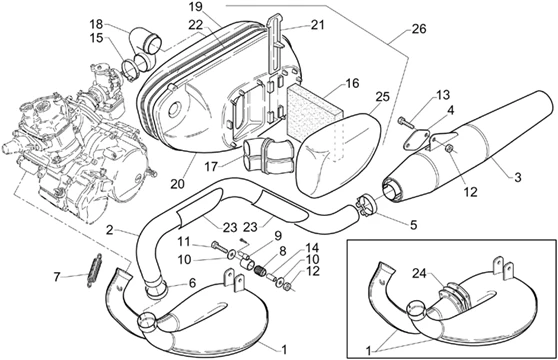

Chassis : 28.08 POT D'ÉCHAPPEMENT-CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_28.08.PNG)
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
1 |
Pot d'échappement |
||||||
|
2 |
Tube raccord inox |
||||||
|
2 |
Tube raccord inox |
||||||
|
3 |
Silencieux inox |
||||||
|
3 |
Silencieux inox |
||||||
|
4 |
Plaq.sup. silencieux; |
||||||
|
5 |
AP8102737 - COLLIER More informationQuantity required : 1 |
||||||
|
6 |
Collier Durite |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
7 |
AP8101259 - RESS.HEL.CYL.TRACT. More informationQuantity required : 1 |
||||||
|
8 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
9 |
AP8135289 - SUPPORT CENTRAL POT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
10 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
10 |
Rondelle d'appui |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
11 |
AP8152291 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
12 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
13 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
14 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
AP8102401 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
Filtre air |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
17 |
AP8120748 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/6/img/46716.jpg)
17 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, MX, RS, CLASSIC, TUONO -AP8120997- More informationQuantity required : 1 |
||||||
|
18 |
Manchon de carburateur |
||||||
|
19 |
Base corps filtre; |
||||||
|
20 |
|
||||||
|
20 |
Corps filtre; |
||||||
|
21 |
Couvercle de filtre; |
||||||
|
22 |
890513 - JOINT D.4 More informationQuantity required : 1 |
||||||
|
23 |
Protection pot d'échappement |
||||||
|
24 |
Joint échappement |
||||||
|
25 |
AP8138375 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
26 |
Corps filtre; |
||||||
|
26 |
Corps filtre; |
||||||
|
26 |
Corps filtre; |
