Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

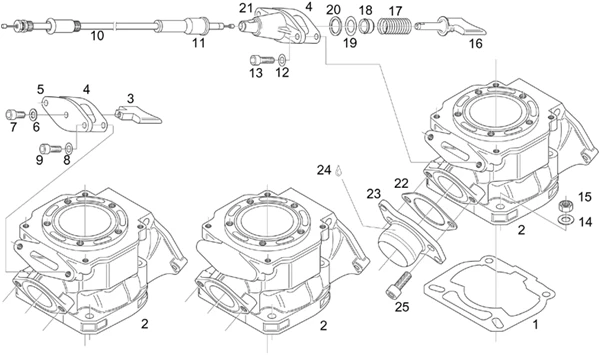

Moteur : 29.21 CYLINDRE - SOUP ÉCHAPP.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_29.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/3/9/img/44439.jpg)
1 |
CYLINDER BASE GASKET- (0,30MM) "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX, SX, RX, PEGASO, CLASSIC, AF1 -AP0650095- More informationQuantity required : 1 |
||||||
1 |
CYLINDER BASE GASKET- (0,50MM) "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX, SX, RX, PEGASO, CLASSIC, AF1 -AP0650096- More informationQuantity required : 1 |
||||||
|
1 |
CYLINDER BASE GASKET- (0,80MM) "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, MX, SX, RX, PEGASO, CLASSIC, AF1 -AP0650097- More informationQuantity required : 1 |
||||||
|
2 |
AP0223990 - CYLINDRE 7 TROUS More informationQuantity required : 1 |
||||||
|
2 |
Cylindre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/6/6/img/43866.jpg)
3 |
AP0253373 - GHIGLIOTTINA 564 MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/4/5/img/43845.jpg)
4 |
EXHAUST VALVE GASKET "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, MX, PEGASO, CLASSIC, AF1 -AP0250975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/6/8/img/43868.jpg)
5 |
EXHAUST VALVE FIXING PLATE "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, MX, CLASSIC, TUONO -AP0253500- More informationQuantity required : 1 |
||||||
|
6 |
AP0827961 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
AP0841331 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/3/6/img/44536.jpg)
8 |
AP0845020 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
9 |
AP0241236 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/6/0/img/44260.jpg)
10 |
TRANSMISSION CABLE FOR EXHAUST VALVE "PIAGGIO GENUINE PART" APRILIA 125 RS, MX, SX, RX, TUONO, PEGASO, CLASSIC, AF1 -AP0297746- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/4/3/img/44543.jpg)
11 |
RUBBER CAP FOR EXHAUST VALVE "PIAGGIO GENUINE PART" APRILIA 125 CLASSIC, AF1, PEGASO, RS, TUONO, RX, SX -AP0860460- More informationQuantity required : 1 |
||||||
|
12 |
AP0845020 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/9/img/43749.jpg)
13 |
AP0241930 - VIS More informationQuantity required : 2 |
||||||
|
14 |
AP0250311 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
AP0942674 - ECROU More informationQuantity required : 4 |
||||||
|
16 |
EXHAUST VALVE "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, MX, CLASSIC, PEGASO, AF1 -AP0253722 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/4/9/img/43649.jpg)
17 |
EXHAUST VALVE SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, CLASSIC, AF1, TUONO -AP0239052- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/1/6/img/43516.jpg)
18 |
GASKET FOR EXHAUST VALVE BODY "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, RS, TUONO, RX, SX -AP0230810- More informationQuantity required : 1 |
||||||
|
19 |
AP0650350 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
20 |
AP0260120 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
21 |
AP0253465 - CORPS DE SOUPAPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/8/2/3/img/43823.jpg)
22 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, TUONO, PEGASO, CLASSIC, AF1 -AP0250271- More informationQuantity required : 1 |
||||||
|
23 |
AP0273970 - FLASQUE ECHAP. CPL More informationQuantity required : 1 |
||||||
|
24 |
AP0297434 - LOCTITE ANTI SEIZE More informationQuantity required : 1 |
||||||
|
25 |
AP0240071 - VIS More informationQuantity required : 2 |
