Vehicle Exploded View - APRILIA CLASSIC 125 1995-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

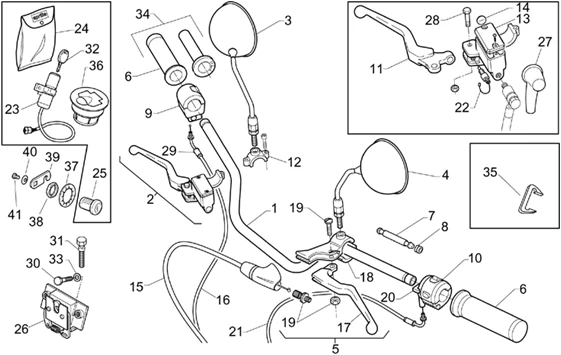

Chassis : 28.06 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/288/Classic_125_1995-1999_28.06.PNG)
1 |
Guidon chromé; |
||||||
|
2 |
AP8113573 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
3 |
Miroir rétroviseur dte |
||||||
|
4 |
Miroir rétroviseur gche; |
||||||
|
5 |
Commande embrayage cpl; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/5/8/img/71358.jpg)
6 |
AP8118425 - COUPLE MANETTES; More informationQuantity required : 1 |
||||||
|
7 |
Masse antivibratile guidon |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
8 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
|
9 |
Bouton démarrage; |
||||||
|
10 |
AP8124173 - DEVIO GCHE+CABL. More informationQuantity required : 1 |
||||||
|
11 |
Levier frein avant; |
||||||
|
12 |
Cavalier levier frein |
||||||
|
13 |
Bouchon |
||||||
|
14 |
AP8113063 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
15 |
Câble embrayage |
||||||
|
16 |
Câble gaz; |
||||||
|
16 |
Câble gaz; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/1/9/img/46319.jpg)
17 |
CLUTCH LEVER- "PIAGGIO GENUINE PART" APRILIA 125 CLASSIC -AP8118429- More informationQuantity required : 1 |
||||||
|
18 |
AP8118200 - CAVALIER LEVIER EMBR; More informationQuantity required : 1 |
||||||
|
19 |
Vis cde embr-série; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
20 |
CHOKE COMMAND LEVER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO -AP8118308- More informationQuantity required : 1 |
||||||
|
21 |
Câble starter; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
22 |
STOP LIGHT SWITCH "PIAGGIO GENUINE PART" UTILISABLE SUR L'ENSEMBLE DE LA GAMME PIAGGIO/GILERA/APRILIA/VESPA -580953- More informationQuantity required : 1 |
||||||
|
23 |
AP8201793 - BLOC DEMARREUR-BLOC More informationQuantity required : 1 |
||||||
|
24 |
AP8102484 - KIT SERRURE; More informationQuantity required : 1 |
||||||
|
25 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
||||||
|
26 |
Bloc fixat.selle+lev |
||||||
|
27 |
Protect. canalis. |
||||||
|
28 |
Goujon de levier; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
29 |
AP8220135 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
30 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
31 |
Vis à arrachement |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
32 |
AP8104613 - "CLE ""APRILIA"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
33 |
AP8152181 - RONDELLE FER PLATE More informationQuantity required : 2 |
||||||
|
34 |
Commande gaz+poignée; |
||||||
|
35 |
AP8121309 - RESSORT CONNECTEURS; More informationQuantity required : 1 |
||||||
|
36 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
37 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
38 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
39 |
FUEL TRAPDOOR LEVER "PIAGGIO GENUINE PART" APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX -AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
40 |
STAR WASHER (FOR LOCKS) "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250-500 2003>2012, RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
41 |
AP8201749 - VIS More informationQuantity required : 1 |
