Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

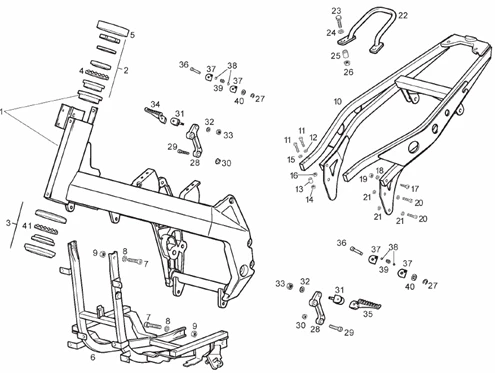

Châssis - parties plastiques - carrosseries : 1 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_1.png)
1 |
8635585 - R-CTO CHASIS C/CASQUILLO GP1 250CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
2 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
3 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
||||||
|
4 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345 More informationQuantity required : 1 |
||||||
|
5 |
00G00200761 - CACHE-POUSSIERE More informationQuantity required : 1 |
||||||
|
6 |
00G00103941A - SCTO.SUBCHA.ANTERIOR.GP1 250CC (C) More informationQuantity required : 1 |
||||||
|
6 |
86338201W03 - SCTO.SUBCHAS.ANT.GP1 125 LS (C) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
7 |
AP8150170 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
8 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
9 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
10 |
86354600WNB - SCTO.SUBCHAS.POST.GP1 125 LS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
11 |
00004184500 - VIS More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
00G01403411 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/0/img/63720.jpg)
14 |
00026008001 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
|
16 |
00026008001 - ECROU More informationQuantity required : 1 |
||||||
|
17 |
00004184001 - VIS More informationQuantity required : 1 |
||||||
|
18 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
20 |
AP8150169 - VIS More informationQuantity required : 1 |
||||||
|
21 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
22 |
00G04902731A - POIGNÉE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/7/img/65647.jpg)
23 |
031120 - BOULON S03112000 More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
00G01403411 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
26 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
27 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
|
28 |
00G00100711 - SOPTE.ESTRB.DR.PASAJ.GP1 250CC More informationQuantity required : 1 |
||||||
|
29 |
|
||||||
|
30 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
31 |
00H02202301 - APPUI REPOSE PIED More informationQuantity required : 1 |
||||||
|
32 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
|
33 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
34 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/5/6/img/64556.jpg)
35 |
LEFT FOOTREST "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01507451- More informationQuantity required : 1 |
||||||
|
36 |
00H04902311 - AXE ARTICULATION TRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/5/img/64955.jpg)
37 |
00H04903401 - SUPPORT FIXATION TRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
38 |
00000061061 - BILLE DIAMETRE 6. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/5/1/img/64951.jpg)
39 |
00H04902291 - RESSORT FIXATION FTRIER PASSAG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
40 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
41 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545 More informationQuantity required : 1 |
