Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

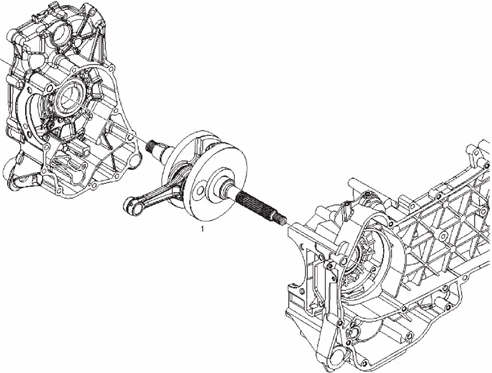

Moteur : 20 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_20.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/8/img/69228.jpg)
1 |
CRANKSHAFT CAT 2 "PIAGGIO GENUINE PART" 250 X-EVO, X8, X9, MP3, VESPA GTS - 8423835002 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/7/img/69227.jpg)
1 |
CRANKSHAFT CAT 1 "PIAGGIO GENUINE PART" PIAGGIO 250 X-EVO, X8, X9, MP3, VESPA GTS/GILERA 250 NEXUS/APRILIA 250 SCARABEO, ATLANTIC - 8423835001 More informationQuantity required : 1 |
