Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

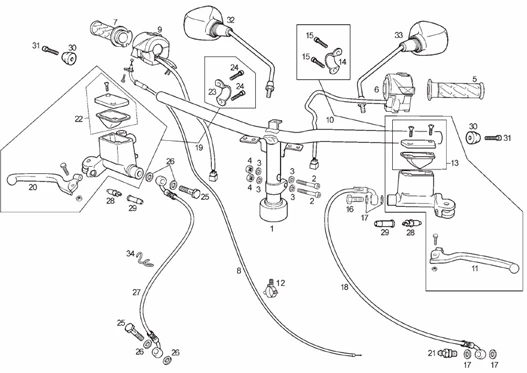

Guidon/direction : 9 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_9.png)
1 |
00G00910011A - SCTO.MANILLAR N.MATE GP1 250CC E2 (C) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/2/img/63652.jpg)
2 |
00004184500 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
3 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
4 |
00000023080 - ECROU INDESSERABLE 8M125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/5/img/63955.jpg)
5 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" 50-125 RS, TUONO 2011> -00G00909071 More informationQuantity required : 1 |
||||||
|
6 |
86166R - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
6 |
86167R - CTO.CONMUTAD ARRANQ.ELECT.GP1 More informationQuantity required : 1 |
||||||
|
7 |
00G00910081 - CTO.PUÐO GAS GP1 250CC More informationQuantity required : 1 |
||||||
|
8 |
864098 - CTO.CABLE GAS GP1 250 LS More informationQuantity required : 1 |
||||||
|
9 |
86167R - CTO.CONMUTAD ARRANQ.ELECT.GP1 More informationQuantity required : 1 |
||||||
|
9 |
86166R - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
10 |
862556 - R-CTO.BOMBA FRENO TR.GP1 OPEN More informationQuantity required : 1 |
||||||
|
11 |
00G00903201 - FREIN D'EMBRAYAGE More informationQuantity required : 1 |
||||||
|
12 |
00G03802091 - ABRAZ.MANGU.AGUA D25,4 GP1 250 More informationQuantity required : 1 |
||||||
|
12 |
863553 - BRIDA PASACABLE D 12,7 More informationQuantity required : 1 |
||||||
|
13 |
00G05601201 - R-ENSEM. KIT REPAR. More informationQuantity required : 1 |
||||||
|
14 |
00H02100901 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
15 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
16 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
17 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
|
18 |
864581 - R-TUBO LIQU.FRENO TRAS.GP1 125 LS More informationQuantity required : 1 |
||||||
|
19 |
861669 - R-CTO.BOMBA FRENO DELANTERO More informationQuantity required : 1 |
||||||
|
20 |
00G00903201 - FREIN D'EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/3/4/img/64934.jpg)
21 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 GPR -00H04702121 More informationQuantity required : 1 |
||||||
|
22 |
FRONT/REAR BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> 862534- More informationQuantity required : 1 |
||||||
|
23 |
00H02100901 - COLLIER More informationQuantity required : 1 |
||||||
|
24 |
00000004512 - VIS A TETE CREUSE 5M80X12 NOIR More informationQuantity required : 1 |
||||||
|
25 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
|
26 |
BRAKE HOSE GASKET "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, TUONO/GILERA 50 SMT, RCR -867238 More informationQuantity required : 1 |
||||||
|
27 |
864578 - R-TUBO LIQU.FRENO DLNT.GP1 125 LS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
28 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/4/img/63654.jpg)
29 |
00005010760 - CAPUCHON More informationQuantity required : 1 |
||||||
|
30 |
86446200W07 - CONTRAPESO MANILL.GP1 LOW SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/9/img/63649.jpg)
31 |
SCREW - FOR OIL PUMP HOUSING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00004154000- More informationQuantity required : 1 |
||||||
|
32 |
863712 - SCTO.ESPEJO RETROV.DR.GP1 125 LS More informationQuantity required : 1 |
||||||
|
33 |
863713 - SCTO.ESPEJO RETROV.IZ.GP1 125 LS More informationQuantity required : 1 |
||||||
|
34 |
00F01500381 - RESSORT More informationQuantity required : 1 |
