Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

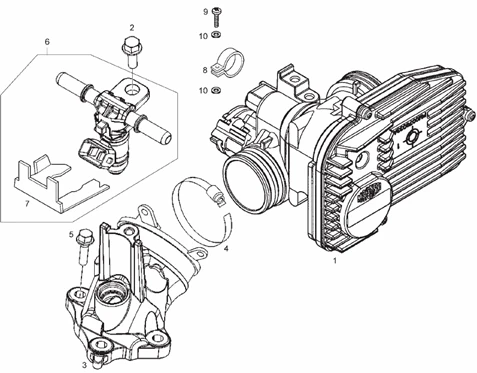

Moteur : 33 INJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_33.png)
1 |
CM078207 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
2 |
830061 - VIS More informationQuantity required : 1 |
||||||
|
3 |
877931 - RACCORD D'ADMISS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
4 |
1A000833 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
5 |
031091 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/5/img/67815.jpg)
6 |
INJECTOR "PIAGGIO GENUINE PART" 250 MP3 2006>, X8 2004>2006, BEVERLY 2006>, VESPA GTS 2006>/GILERA 250 NEXUS 2006>/APRILIA 250 ATLANTIC 2006>, SPORT-CITY 2006>, SCARABEO 2006> -6389495 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
638792 - COLLIERS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
9 |
SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295- More informationQuantity required : 1 |
||||||
|
10 |
00031105000 - RONDELLE PLATE M5 DIN125 More informationQuantity required : 1 |
