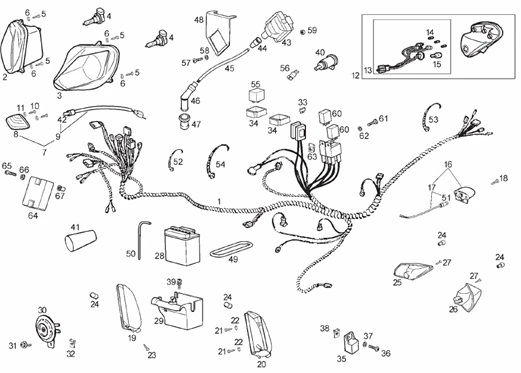

Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)

	P2R reference	195076
	Maker reference	863808

863808 - CTO.INSTAL.ELECTR.GP1 250 LS

	P2R reference	63972
	Maker reference	00G01026011

00G01026011 - OPTIQUE DR.

	P2R reference	194957
	Maker reference	00H01023011

00H01023011 - OPTIQUE DROIT

	P2R reference	194958
	Maker reference	00H01024011

00H01024011 - OPTIQUE GAUCHE

	P2R reference	63973
	Maker reference	00G01027011

00G01027011 - OPTIQUE GA.

	P2R reference	64381
	Maker reference	00H01004131

LIGHT BULB H8 12V-35W "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD, RS 50, SPORT-CITY -00H01004131-

	P2R reference	194959
	Maker reference	00H01002131

00H01002131 - AMPOULE

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	65005
	Maker reference	00H05704471

00H05704471 - LUMIERE DE POSITION

	P2R reference	65001
	Maker reference	00H05701471

00H05701471 - FEU

	P2R reference	65004
	Maker reference	00H05703471

00H05703471 - TUBE PHARES

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	64387
	Maker reference	00H01011321

TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321-

	P2R reference	64380
	Maker reference	00H01003951

00H01003951 - FAISCEAU FEU ARRIERE

	P2R reference	64371
	Maker reference	00H01001371

00H01001371 - AMPOULE 12V.2,31W

	P2R reference	48170
	Maker reference	AP8127490

BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490-

	P2R reference	64135
	Maker reference	00G05701471

00G05701471 - TUBE PHARES

	P2R reference	64029
	Maker reference	00G02300581

00G02300581 - FEU REGISTRE

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	194960
	Maker reference	00G01706021

00G01706021 - CLIGNOTANT

	P2R reference	194961
	Maker reference	00G01706311

00G01706311 - CLIGNOTANT

	P2R reference	71603
	Maker reference	AP8127489

AP8127489 - LAMPE RY10W 12V

	P2R reference	194962
	Maker reference	00G01700531

00G01700531 - CLIGNOTANT

	P2R reference	194963
	Maker reference	00G01700541

00G01700541 - CLIGNOTANT

	P2R reference	194964
	Maker reference	00G03304401

00G03304401 - BATERIA 12V.12A GP1 250CC

	P2R reference	194965
	Maker reference	863711

863711 - CAJA BATERIA GP1 125 LS

	P2R reference	72984
	Maker reference	CM071803

HORN "PIAGGIO GENUINE PART" -CM071803-

	P2R reference	63923
	Maker reference	00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	64377
	Maker reference	00H01002911

00H01002911 - FUSIBLE

	P2R reference	195077
	Maker reference	864566

864566 - FUSIBLE 30 AMP

	P2R reference	70898
	Maker reference	942577

942577 - SUPPORT RELAIS

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	187989
	Maker reference	00D05900031

00D05900031 - VIS

	P2R reference	187337
	Maker reference	00G05700641

00G05700641 - CONNECTEUR ALIMENTATION TELEPH

	P2R reference	64684
	Maker reference	00H02300961

PROTECTION FOR ELECTRIC BUNDLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -00H02300961

	P2R reference	64379
	Maker reference	00H01003131

00H01003131 - TUBE PHARE

	P2R reference	67207
	Maker reference	58120R

IGNITION COIL "PIAGGIO GENUINE PART" 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9,GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC -58120R

	P2R reference	65661
	Maker reference	0716715

071671 - CAPUCHON

	P2R reference	195078
	Maker reference	863902

863902 - CTO.CABLE BOBINA DE ALTA GP1 250 LS

	P2R reference	66266
	Maker reference	293845

SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845

	P2R reference	66508
	Maker reference	436919

436919 - COLLIER

	P2R reference	195079
	Maker reference	863842

863842 - CARTELA FIJ.BOBINA GP1 250 LS

	P2R reference	64016
	Maker reference	00G01802361

00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE

	P2R reference	194966
	Maker reference	00H04402601

00H04402601 - TUBO DESVAP.BATERIA GPR 04

	P2R reference	64379
	Maker reference	00H01003131

00H01003131 - TUBE PHARE

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	195080
	Maker reference	861250

861250 - CTO.CENTRAL INTTES.

	P2R reference	195081
	Maker reference	00G02301991

00G02301991 - R-CTO.DIODOS INSTAL.ELECT.GP1

	P2R reference	195082
	Maker reference	863904

863904 - TOR.C/RED CRUZ 3MX25 D7985 ZNB

	P2R reference	195083
	Maker reference	863905

863905 - ARAN.ESTR.D3 DIN6797-A ZNB

	P2R reference	189105
	Maker reference	00N05700711

00N05700711 - RELE FARO GP130

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	67823
	Maker reference	639110

VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110

	P2R reference	66340
	Maker reference	323990

323990 - TENDEUR

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	64895
	Maker reference	00H04400711

00H04400711 - ECROU
