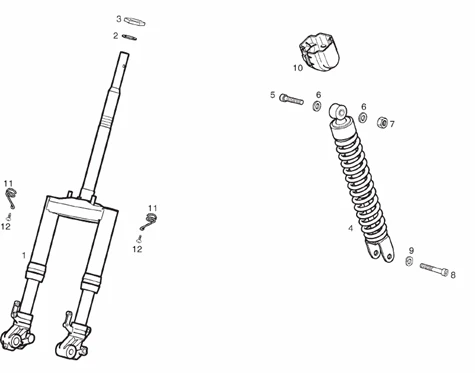

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA) DERBI

Vues éclatées : 2 FOURCHE
Fourche
Search
861216 - CTO.HORQU.GP1 50CC OPEN

1
P2R reference P2R reference 195107
Maker reference Maker reference 861216

861216 - CTO.HORQU.GP1 50CC OPEN

More information

Quantity required : 1

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

2
P2R reference P2R reference 63783
Maker reference Maker reference 00375145

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

More information

Quantity required : 1

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

3
P2R reference P2R reference 65339
Maker reference Maker reference 01110945

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

More information

Quantity required : 1

861610 - CTO.AMORTIG.GP1 50CC BASE

4
P2R reference P2R reference 195108
Maker reference Maker reference 861610

861610 - CTO.AMORTIG.GP1 50CC BASE

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000040145005

WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001-

6
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001-

More information

Quantity required : 1

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

7
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440-

More information

Quantity required : 1

8
P2R reference P2R reference
Maker reference Maker reference 000042150005

9
P2R reference P2R reference
Maker reference Maker reference 000000331005

861592 - TAPETA SUP.AMORTG.GP1 50CC OPEN

10
P2R reference P2R reference 195109
Maker reference Maker reference 861592

861592 - TAPETA SUP.AMORTG.GP1 50CC OPEN

More information

Quantity required : 1

00H04401261 - RESSORT

11
P2R reference P2R reference 192912
Maker reference Maker reference 00H04401261

00H04401261 - RESSORT

More information

Quantity required : 1

969296 - BOULON

12
P2R reference P2R reference 70959
Maker reference Maker reference 969296

969296 - BOULON

More information

Quantity required : 1
