Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

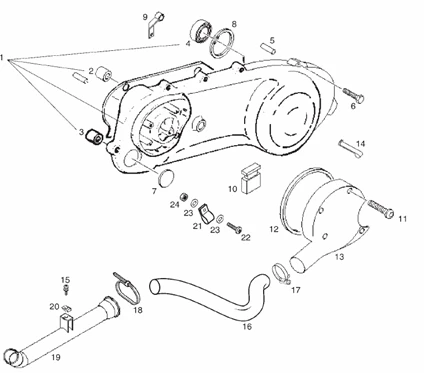

Vues éclatées : 23 COUVERCLE CARTER VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1151/GP1_50cc_Open_2ver_E2_2006-2008_(EMEA)_23.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/6/img/68756.jpg)
1 |
TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, VESPA PRIMAVERA, SPRINT/GILERA 50 RUNNER/APRILIA 50 SR, MOJITO -8284535- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/7/img/66167.jpg)
2 |
KICK STARTER BUSH "PIAGGIO GENUINE PART" 50 FLY 2 STROKE, LIBERTY 2 STROKE, NRG, TYPHOON, VESPA LX 2 STROKE/GILERA 50 STALKER, RUNNER -286209- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
3 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
4 |
BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
5 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 1 |
||||||
6 |
00H05001551 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/6/img/66646.jpg)
7 |
UPPER PLATE FIXING BUSH - ZIP "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC -483859 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
8 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
9 |
KICK STARTER NUT-PINION SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -830212 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/3/7/img/66537.jpg)
10 |
463872 - TAMPON BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
11 |
SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/8/img/66618.jpg)
12 |
482432 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/7/img/66617.jpg)
13 |
VARIATOR AIRFLOW COVER "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -482404 More informationQuantity required : 1 |
||||||
|
14 |
597418 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
15 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041 More informationQuantity required : 1 |
||||||
|
16 |
861888 - FUELLE ENT.AIRE CVT GP1 50CC OPEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
17 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531- More informationQuantity required : 1 |
||||||
|
19 |
00G03600501 - TUBO RIGIDO ENT.VARIAD.GP1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
21 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454 More informationQuantity required : 1 |
||||||
|
22 |
00012053500 - VIS 5M80X35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
23 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
|
24 |
|
