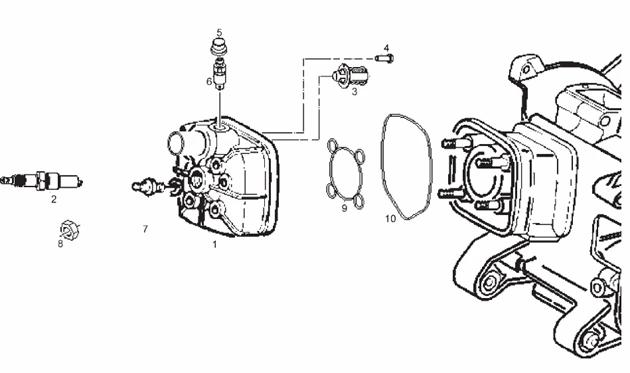

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA) DERBI

Vues éclatées : 20 CULASSE
Culasse
Search
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, ZIP SP 2000>/GILERA 50 RUNNER, DNA 2000>/APRILIA 50 SR H2O 2004> -8264901

1
P2R reference P2R reference 68604
Maker reference Maker reference 8264901

CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, ZIP SP 2000>/GILERA 50 RUNNER, DNA 2000>/APRILIA 50 SR H2O 2004> -8264901

More information

Quantity required : 1

SPARK PLUG CHAMPION RN1C "PIAGGIO GENUINE PART" COMMON TO THE 50cc WATER COOLED SCOOTERS -438031-

2
P2R reference P2R reference 66518
Maker reference Maker reference 438031

SPARK PLUG CHAMPION RN1C "PIAGGIO GENUINE PART" COMMON TO THE 50CC WATER COOLED SCOOTERS -438031-

More information

Quantity required : 1

THERMOSTAT "PIAGGIO GENUINE PART" 50 NRG, ZIP L.C. /GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR L.C. -483395

3
P2R reference P2R reference 66631
Maker reference Maker reference 483395

THERMOSTAT "PIAGGIO GENUINE PART" 50 NRG, ZIP L.C. /GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR L.C. -483395

More information

Quantity required : 1

256756 - BOULON

4
P2R reference P2R reference 66016
Maker reference Maker reference 256756

256756 - BOULON

More information

Quantity required : 1

063435 - CAPUCHON

5
P2R reference P2R reference 65657
Maker reference Maker reference 0634355

063435 - CAPUCHON

More information

Quantity required : 1

BRAKE DRAIN SCREW -430045-

6
P2R reference P2R reference 66370
Maker reference Maker reference 430045

BRAKE DRAIN SCREW -430045-

More information

Quantity required : 1

947008 - THERMOSTAT

7
P2R reference P2R reference 70899
Maker reference Maker reference 947008

947008 - THERMOSTAT

More information

Quantity required : 1

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

8
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 1

CYLINDER HEAD GASKET- INNER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC L.C. -288289-

9
P2R reference P2R reference 66189
Maker reference Maker reference 288289

CYLINDER HEAD GASKET- INNER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC L.C. -288289-

More information

Quantity required : 1

O'RING GASKET FOR CYLINDER HEAD (NEW MODEL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC LIQUIDE -482988-

10
P2R reference P2R reference 66628
Maker reference Maker reference 482988

O'RING GASKET FOR CYLINDER HEAD (NEW MODEL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC LIQUIDE -482988-

More information

Quantity required : 1
