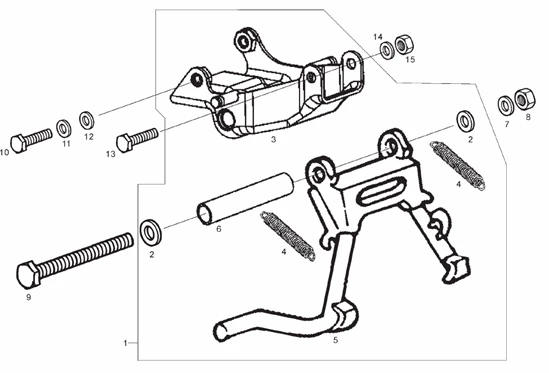

Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA) DERBI

Vues éclatées : 3 BÉQUILLE
Béquille
Search
CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

1
P2R reference P2R reference 67222
Maker reference Maker reference 581537

CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

More information

Quantity required : 1

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -271695-

2
P2R reference P2R reference 66102
Maker reference Maker reference 271695

STAND AXLE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -271695-

More information

Quantity required : 1

CENTRAL STAND SUPPORT -272929-

3
P2R reference P2R reference 66121
Maker reference Maker reference 272929

CENTRAL STAND SUPPORT -272929-

More information

Quantity required : 1

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940

4
P2R reference P2R reference 66143
Maker reference Maker reference 278940

SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -278940

More information

Quantity required : 1

CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

5
P2R reference P2R reference 67222
Maker reference Maker reference 581537

CENTER STAND "PIAGGIO GENUINE PART" 50 NRG 1998>/GILERA 50 STALKER 1998>2011, RUNNER 2005 -581537-

More information

Quantity required : 1

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50cc -583603-

6
P2R reference P2R reference 67287
Maker reference Maker reference 583603

CENTER STAND PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER 50CC -583603-

More information

Quantity required : 1

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

7
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408-

More information

Quantity required : 1

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

8
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 stroke -030080-

9
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW - FOR CENTRAL STAND SUPPORT (8X70) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -030080-

More information

Quantity required : 1

00012083001 - BOUL.SER.DISQUE FR.ARR.FEN.95

10
P2R reference P2R reference 63701
Maker reference Maker reference 000120830015

00012083001 - BOUL.SER.DISQUE FR.ARR.FEN.95

More information

Quantity required : 1

00000033080 - RONDELLE

11
P2R reference P2R reference 63600
Maker reference Maker reference 000000330805

00000033080 - RONDELLE

More information

Quantity required : 1

00G00803101 - RONDELLE

12
P2R reference P2R reference 63946
Maker reference Maker reference 00G00803101

00G00803101 - RONDELLE

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 000220870215

00000033080 - RONDELLE

14
P2R reference P2R reference 63600
Maker reference Maker reference 000000330805

00000033080 - RONDELLE

More information

Quantity required : 1

00232080021 - ECROU

15
P2R reference P2R reference 63762
Maker reference Maker reference 002320800215

00232080021 - ECROU

More information

Quantity required : 1
