Vehicle Exploded View - DERBI GP1 50 cc Open 2ver E2 2006-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

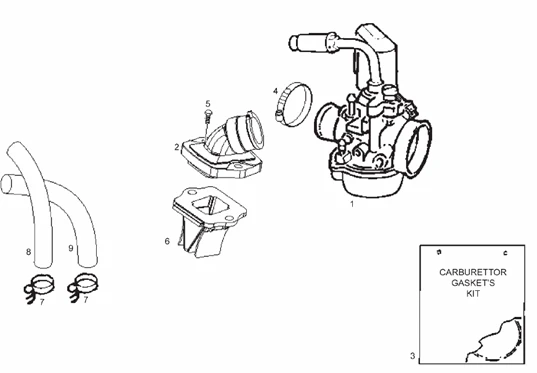

Vues éclatées : 29 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1151/GP1_50cc_Open_2ver_E2_2006-2008_(EMEA)_29.png)
1 |
CARBURETTOR "PIAGGIO GENUINE PART" GILERA 50 RUNNER 2005> -8479346- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/4/6/img/152746.jpg)
2 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/VESPA 50 LX/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR -1A008824- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
3 |
DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
4 |
00F00900531 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
5 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
5 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/2/img/68692.jpg)
6 |
REED VALVE "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 2 STROKE (FRAME N- RECOMMENDED) -82775R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
7 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/7/img/66657.jpg)
8 |
484260 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/1/img/66781.jpg)
9 |
488139 - TUBE More informationQuantity required : 1 |
