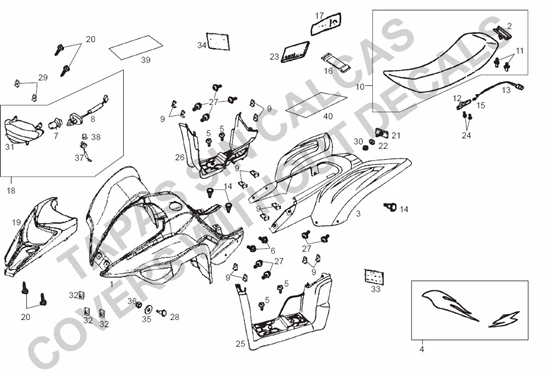

Châssis - parties plastiques - carrosseries : 3 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_3_20250925173855.png)
1 |
00Q01501231 - CARENADO FRONTAL ROJO More informationQuantity required : 1 |
||||||
|
1 |
00Q01501232 - CARENADO FRONTAL NEGRO More informationQuantity required : 1 |
||||||
|
2 |
00Q06100261 - PLACA SILLIN More informationQuantity required : 1 |
||||||
|
3 |
00Q04901091 - CARENADO TRASERO More informationQuantity required : 1 |
||||||
|
3 |
00Q04901092 - CARENADO TRASERO NEGRO More informationQuantity required : 1 |
||||||
|
4 |
00Q02201321 - CTO. CALCAS CARENADO More informationQuantity required : 1 |
||||||
|
4 |
00Q02201322 - CTO. CALCAS CARENADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
5 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600 More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00Q01000131 - LAMPARA More informationQuantity required : 1 |
||||||
|
8 |
00Q01002791 - INSTALACION FARO DEL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
|
10 |
00Q00601011 - SILLIN More informationQuantity required : 1 |
||||||
|
11 |
00Q01500951 - TOPE SILLIN More informationQuantity required : 1 |
||||||
|
12 |
00Q00600681 - CERRADURA SILLIN More informationQuantity required : 1 |
||||||
|
13 |
00Q00600181 - CABLE CIERRE SILLIN More informationQuantity required : 1 |
||||||
|
14 |
00Q06102101 - TAPON COLIN More informationQuantity required : 1 |
||||||
|
15 |
00Q00601181 - MUELLE CIERRE SILLIN More informationQuantity required : 1 |
||||||
|
16 |
00Q01501801 - BRIDA SUJECCION BOLSA HERRAMIE More informationQuantity required : 1 |
||||||
|
17 |
00Q05100111 - BOLSA HERRAMIENTAS More informationQuantity required : 1 |
||||||
|
18 |
00Q01002011 - R-CTO FARO DEL. QUAD 2005 More informationQuantity required : 1 |
||||||
|
19 |
00Q01501281 - CARCASA FARO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
20 |
00012051200 - VIS T.RONDE CROIX 5M80X12 More informationQuantity required : 1 |
||||||
|
21 |
00Q05100651 - CAPTAFAROS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
22 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
||||||
|
23 |
00Q05100121 - MANUAL INSTRUCCIONES More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
25 |
00Q01500101 - REPOSAPIES IZQUIERDO More informationQuantity required : 1 |
||||||
|
26 |
00Q01500501 - REPOSAPIES DERECHO More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
28 |
00Q06101101 - TAPON CARENADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
29 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 1 |
||||||
|
30 |
00Q04200261 - TUERCA More informationQuantity required : 1 |
||||||
|
31 |
00Q01000061 - R-CRISTAL PILOTO More informationQuantity required : 1 |
||||||
|
32 |
00Q04401461 - TUERCA FIJACION More informationQuantity required : 1 |
||||||
|
33 |
00Q04601511 - CALCA WARNING More informationQuantity required : 1 |
||||||
|
34 |
00Q04602511 - CALCA WARNING (Y-12) More informationQuantity required : 1 |
||||||
|
35 |
00Q01501241 - ARANDELA PLANA More informationQuantity required : 1 |
||||||
|
36 |
00Q01501251 - TUERCA More informationQuantity required : 1 |
||||||
|
37 |
00Q02300321 - R-INSTALACION LUZ POSICION More informationQuantity required : 1 |
||||||
|
38 |
00Q02300331 - LAMPARA LUZ POSICION More informationQuantity required : 1 |
||||||
|
39 |
00Q01501261 - JUNTA AISLAMIENTO CAR. DEL. More informationQuantity required : 1 |
||||||
|
40 |
00Q04901191 - JUNTA AISLAMIENTO CAR. TRAS. More informationQuantity required : 1 |
