Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2005 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

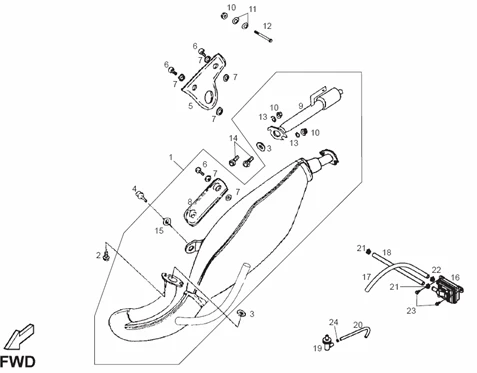

Moteur : 018A TUYAU D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_018A_20250925174116.png)
1 |
00Q03401601 - CTO. TUBO ESCAPE More informationQuantity required : 1 |
||||||
|
2 |
00Q03400051 - TORNILLO 6X18 More informationQuantity required : 1 |
||||||
|
3 |
00Q03400321 - JUNTA More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
00Q04200071 - SOPORTE More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
00Q04200281 - ARANDELA More informationQuantity required : 1 |
||||||
|
8 |
00Q01800401 - PROTECTOR More informationQuantity required : 1 |
||||||
|
9 |
00Q03401411 - SORDINA More informationQuantity required : 1 |
||||||
|
10 |
00Q04200261 - TUERCA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
11 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
||||||
|
12 |
00Q06800471 - TOR.FIJ.BRAZOS SUSP. More informationQuantity required : 1 |
||||||
|
13 |
BOULON S03105900 |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
00Q04200741 - CAJA AIRE SECUNDARIO More informationQuantity required : 1 |
||||||
|
17 |
00Q04200721 - TUBO ENTRADA CAJA SAS More informationQuantity required : 1 |
||||||
|
18 |
00Q04202721 - TUBO SALIDA CAJA SAS More informationQuantity required : 1 |
||||||
|
19 |
00Q04200761 - FILTRO More informationQuantity required : 1 |
||||||
|
20 |
00Q04201721 - TUBO ENTRADA AIRE More informationQuantity required : 1 |
||||||
|
21 |
00Q00901531 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
22 |
00Q00902531 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
00Q00903531 - ABRAZADERA More informationQuantity required : 1 |
