Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2005 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

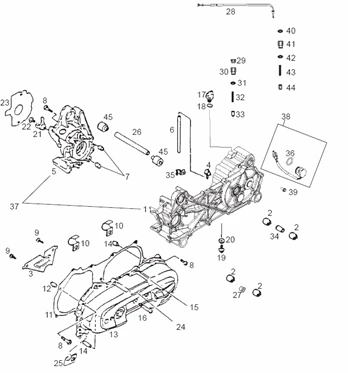

Moteur : 016B CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_016B_20250925174051.png)
1 |
00Q03001041 - CARTER IZQUIERDO More informationQuantity required : 1 |
||||||
|
2 |
00Q01801141 - CASQUILLO More informationQuantity required : 1 |
||||||
|
3 |
00Q03000871 - PLACA More informationQuantity required : 1 |
||||||
|
4 |
00Q03000601 - RACOR RESPIRADERO More informationQuantity required : 1 |
||||||
|
5 |
00Q03000011 - CARTER DR. More informationQuantity required : 1 |
||||||
|
7 |
00Q03001021 - CENTRADOR More informationQuantity required : 1 |
||||||
|
8 |
00Q03000211 - TOR.FIJ.TAPA CARTER More informationQuantity required : 1 |
||||||
|
9 |
00Q01702111 - TORNILLO More informationQuantity required : 1 |
||||||
|
10 |
00Q02200591 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
11 |
00Q03000321 - JUNTA CARTER More informationQuantity required : 1 |
||||||
|
12 |
00Q03000021 - CENTRADOR CARTER More informationQuantity required : 1 |
||||||
|
13 |
00Q06401061 - TAPA CARTER IZQUIERDA More informationQuantity required : 1 |
||||||
|
14 |
00Q03000831 - CENTRADOR More informationQuantity required : 1 |
||||||
|
15 |
00Q01703111 - TORNILLO More informationQuantity required : 1 |
||||||
|
16 |
00Q01704111 - TORNILLO More informationQuantity required : 1 |
||||||
|
17 |
00Q03001081 - TORNILLO LLENADO More informationQuantity required : 1 |
||||||
|
18 |
00Q03000621 - ANILLO TORICO More informationQuantity required : 1 |
||||||
|
19 |
00Q03000131 - TOR.VACIADO ACEITE More informationQuantity required : 1 |
||||||
|
20 |
00Q03000121 - ARAND.VACIADO ACEITE More informationQuantity required : 1 |
||||||
|
21 |
00Q03700181 - SOPORTE RETEN More informationQuantity required : 1 |
||||||
|
22 |
00Q01705111 - TORNILLO More informationQuantity required : 1 |
||||||
|
23 |
00Q03000201 - TAPA VOLANTE MAG. More informationQuantity required : 1 |
||||||
|
24 |
00Q03700391 - SOPORTE More informationQuantity required : 1 |
||||||
|
25 |
00Q03000361 - TOPE PROTECTOR More informationQuantity required : 1 |
||||||
|
26 |
00Q03000071 - TUBO CARTERS More informationQuantity required : 1 |
||||||
|
27 |
00Q09000001 - DISTANCIADOR More informationQuantity required : 1 |
||||||
|
28 |
00Q09000002 - CABLE REVERSE More informationQuantity required : 1 |
||||||
|
29 |
00Q09000003 - TUERCA More informationQuantity required : 1 |
||||||
|
30 |
00Q09000004 - SOPORTE More informationQuantity required : 1 |
||||||
|
31 |
00Q09000005 - ARANDELA PLANA DE COBRE More informationQuantity required : 1 |
||||||
|
32 |
00Q09000006 - MUELLE More informationQuantity required : 1 |
||||||
|
33 |
00Q09000007 - CLAVIJA DE ENCLAVAMIENTO More informationQuantity required : 1 |
||||||
|
34 |
00Q09000008 - DISTANCIADOR More informationQuantity required : 1 |
||||||
|
35 |
00Q09000009 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
36 |
00Q09000010 - ANILLO More informationQuantity required : 1 |
||||||
|
37 |
00Q03000001 - R-CTO CARTERS More informationQuantity required : 1 |
||||||
|
38 |
00Q09000011 - CTO. INTERRUPTOR REVERSE More informationQuantity required : 1 |
||||||
|
39 |
00Q09000012 - TORNILLO More informationQuantity required : 1 |
||||||
|
40 |
00Q09000013 - ARANDELA PLANA DE COBRE More informationQuantity required : 1 |
||||||
|
41 |
00Q09000014 - SOPORTE REVERSE More informationQuantity required : 1 |
||||||
|
42 |
00Q09000015 - ARANDELA More informationQuantity required : 1 |
||||||
|
43 |
00Q09000016 - MUELLE REVERSE More informationQuantity required : 1 |
||||||
|
44 |
00Q09000017 - TOPE REVERSE More informationQuantity required : 1 |
||||||
|
45 |
00Q02200711 - SILENTBLOCK More informationQuantity required : 1 |
