Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2005 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

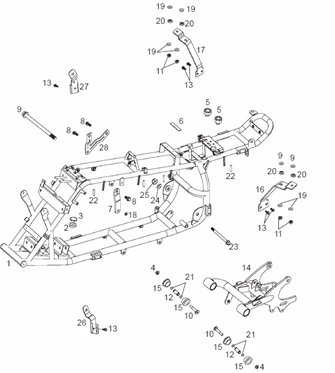

Moteur : 001B BIELLETTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_001B_20250925173839.png)
1 |
00Q01902601 - CTO. CUADRO More informationQuantity required : 1 |
||||||
|
2 |
00Q06500451 - COJINETE More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
|
4 |
|
||||||
|
5 |
00Q06800091 - TOPE GOMA More informationQuantity required : 1 |
||||||
|
6 |
00Q02200791 - GOMA TOPE More informationQuantity required : 1 |
||||||
|
7 |
00Q00100891 - PLACA IZ.SOPTE.MOTOR More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
|
9 |
00Q02503271 - TORNILLO 10 X 208 More informationQuantity required : 1 |
||||||
|
10 |
00Q00302981 - TORNILLO BASCULANTE More informationQuantity required : 1 |
||||||
|
11 |
00Q00023060 - TUERCA NYLON M6 More informationQuantity required : 1 |
||||||
|
12 |
00Q00302991 - SEPARADOR More informationQuantity required : 1 |
||||||
|
13 |
00Q04900481 - TORNILLO 6X14 More informationQuantity required : 1 |
||||||
|
14 |
00Q00302971 - BASCULANTE More informationQuantity required : 1 |
||||||
|
15 |
00Q00300231 - CASQUILLO More informationQuantity required : 1 |
||||||
|
16 |
00Q00502101 - SOPORTE TRASERO IZQUIERDO More informationQuantity required : 1 |
||||||
|
17 |
00Q00503101 - SOPORTE TRASERO DERECHO More informationQuantity required : 1 |
||||||
|
18 |
00Q00023100 - TUERCA NYLON M10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
19 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171 More informationQuantity required : 1 |
||||||
|
20 |
00Q01500021 - PASACABLES More informationQuantity required : 1 |
||||||
|
21 |
00Q00302992 - ANILLO More informationQuantity required : 1 |
||||||
|
22 |
00Q06801091 - GOMA TOPE More informationQuantity required : 1 |
||||||
|
23 |
00Q01902611 - TORNILLO More informationQuantity required : 1 |
||||||
|
24 |
00Q02601271 - ARANDELA PLANA More informationQuantity required : 1 |
||||||
|
25 |
00Q02601261 - TUERCA CERRAJE More informationQuantity required : 1 |
||||||
|
26 |
00Q01901621 - SOPORTE IZQ. CARENADO FRONTAL More informationQuantity required : 1 |
||||||
|
27 |
00Q01901611 - SOPORTE DR CARENADO FRONTAL More informationQuantity required : 1 |
||||||
|
28 |
00Q00101901 - PLACA DERECHA MOTOR More informationQuantity required : 1 |
