Vehicle Exploded View - DERBI QUAD 50 QUAD DFW 50cc 2005 E2 3ª edicion
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

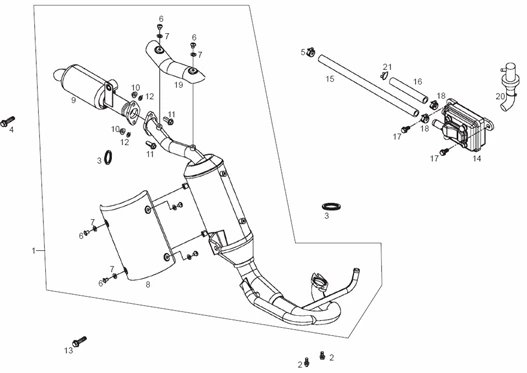

Moteur : 018B TUYAU D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1105/QUAD_DFW_50cc_2005_E2_3_edicion_018B_20250925174126.png)
1 |
00Q03402601 - CTO. TUBO ESCAPE More informationQuantity required : 1 |
||||||
|
2 |
00Q03400051 - TORNILLO 6X18 More informationQuantity required : 1 |
||||||
|
3 |
00Q03400321 - JUNTA More informationQuantity required : 1 |
||||||
|
4 |
00Q03402611 - TORNILLO FIJACION More informationQuantity required : 1 |
||||||
|
5 |
00Q00902531 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
6 |
00Q01801411 - TORNILLO FIJACION More informationQuantity required : 1 |
||||||
|
7 |
00Q04200281 - ARANDELA More informationQuantity required : 1 |
||||||
|
8 |
00Q01801401 - PROTECTOR More informationQuantity required : 1 |
||||||
|
9 |
00Q03401411 - SORDINA More informationQuantity required : 1 |
||||||
|
10 |
00Q04200261 - TUERCA More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/7/img/65647.jpg)
13 |
031120 - BOULON S03112000 More informationQuantity required : 1 |
||||||
|
14 |
00Q04200741 - CAJA AIRE SECUNDARIO More informationQuantity required : 1 |
||||||
|
15 |
00Q04200721 - TUBO ENTRADA CAJA SAS More informationQuantity required : 1 |
||||||
|
16 |
00Q04203721 - TUBO SALIDA CAJA SAS More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
|
18 |
00Q00901531 - ABRAZADERA More informationQuantity required : 1 |
||||||
|
19 |
00Q01802401 - TAPA PROTECTORA More informationQuantity required : 1 |
||||||
|
20 |
00Q04201761 - FILTRO More informationQuantity required : 1 |
||||||
|
21 |
00Q00904531 - CIRCLIP More informationQuantity required : 1 |
