Vehicle Exploded View - APRILIA QUASAR 180 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

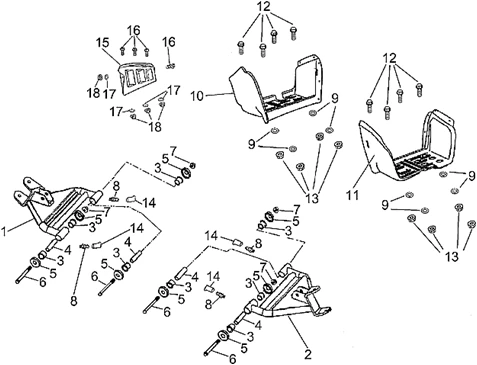

Chassis : 28.19 BIELLES-REPOSE PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_28.19.PNG)
1 |
Bielles - Suspension D |
||||||
|
2 |
Bielles - Suspension G |
||||||
|
3 |
Douille |
||||||
|
4 |
Entretoise |
||||||
|
5 |
AP8910975 - PARAPOLVERE More informationQuantity required : 8 |
||||||
|
6 |
Vis bride |
||||||
|
7 |
Ecrou bridé |
||||||
|
8 |
AP8910256 - VALVOLA INGRASSAGGIO More informationQuantity required : 4 |
||||||
|
9 |
Rondelle plate |
||||||
|
10 |
AP8910999 - PEDANA POGGIAPIEDI DX More informationQuantity required : 1 |
||||||
|
11 |
AP8911000 - PEDANA POGGIAPIEDI SX More informationQuantity required : 1 |
||||||
|
12 |
Vis bride |
||||||
|
13 |
DADO M6 |
||||||
|
14 |
Capuchon |
||||||
|
15 |
AP8910949 - PROTEZIONE ANTICALORE More informationQuantity required : 1 |
||||||
|
16 |
Vis bride |
||||||
|
17 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 4 |
||||||
|
18 |
DADO M5 |
