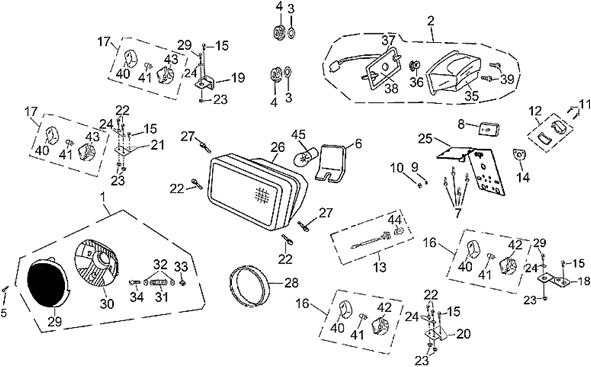

Chassis : 28.34 PHARE AVANT-FEU ARRIÈRE GRIP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_28.34.PNG)
1 |
Fermeture tab. AV cpl. |
||||||
|
2 |
AP8910189 - FANALE POST. More informationQuantity required : 1 |
||||||
|
3 |
Rondelle plate |
||||||
|
4 |
DADO FLANG.M6 |
||||||
|
5 |
AP8911046 - VITE M4X16 More informationQuantity required : 2 |
||||||
|
6 |
Pare-poussière |
||||||
|
7 |
Vis bride |
||||||
|
8 |
AP8910518 - CATADIOTTRO More informationQuantity required : 1 |
||||||
|
9 |
AP8910560 - ROSETTA PIANA More informationQuantity required : 1 |
||||||
|
10 |
DADO FLANG.M5 |
||||||
|
11 |
Vis taraud |
||||||
|
12 |
AP8910579 - VETRO LUCE TARGA More informationQuantity required : 1 |
||||||
|
13 |
AP8910517 - CABLAGGIO LUCE TARGA More informationQuantity required : 1 |
||||||
|
14 |
Joint |
||||||
|
15 |
Vis bride |
||||||
|
16 |
AP8910533 - INDICATORE DIREZIONE SX More informationQuantity required : 2 |
||||||
|
17 |
AP8910532 - INDICATORE DIREZIONE DX More informationQuantity required : 2 |
||||||
|
18 |
AP8910573 - SUPPORTO INDICATORE DIR.SX More informationQuantity required : 1 |
||||||
|
19 |
AP8910572 - SUPPORTO INDICATORE DIR.DX More informationQuantity required : 1 |
||||||
|
20 |
AP8910860 - SUPP.INDICATORE DIR.ANT.SX More informationQuantity required : 1 |
||||||
|
21 |
AP8910858 - SUPP.INDICATORE DIR.ANT.DX More informationQuantity required : 1 |
||||||
|
22 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 8 |
||||||
|
23 |
DADO M5 |
||||||
|
24 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 6 |
||||||
|
25 |
Support plaque |
||||||
|
26 |
Phare avant |
||||||
|
27 |
Vis bride |
||||||
|
28 |
AP8910850 - GUARNIZIONE PARAPOLVERE More informationQuantity required : 2 |
||||||
|
29 |
AP8910847 - CHIUSURA CARENA More informationQuantity required : 2 |
||||||
|
30 |
Support |
||||||
|
31 |
Ressort |
||||||
|
32 |
Rondelle plate |
||||||
|
33 |
AP8910853 - DADO More informationQuantity required : 2 |
||||||
|
34 |
Vis taraud |
||||||
|
35 |
Glace phare AR |
||||||
|
36 |
Lampe (ou Ampoule) |
||||||
|
37 |
AP8910530 - GUARNIZIONE FANALE POST. More informationQuantity required : 1 |
||||||
|
38 |
AP8910554 - PORTALAMPADA More informationQuantity required : 1 |
||||||
|
39 |
Vis taraud |
||||||
|
40 |
AP8910578 - VETRO INDICATORE DIR. SX More informationQuantity required : 4 |
||||||
|
41 |
Lampe (ou Ampoule) |
||||||
|
42 |
AP8910556 - INDICATORE DIRE.ANT.SX More informationQuantity required : 2 |
||||||
|
43 |
AP8910555 - INDICATORE DIRE.ANT.DX More informationQuantity required : 2 |
||||||
|
44 |
Lampe (ou Ampoule) |
||||||
|
44 |
Lampe (ou Ampoule) |
