Vehicle Exploded View - APRILIA QUASAR 180 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

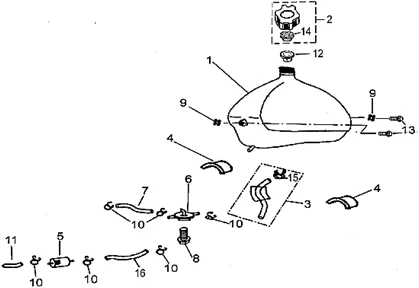

Chassis : 28.23 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_28.23.PNG)
1 |
AP8910725 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
|
2 |
AP8910727 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
3 |
AP8911076 - TUBO More informationQuantity required : 1 |
||||||
|
4 |
Eponge adhésive |
||||||
|
5 |
Filtre |
||||||
|
6 |
Robinet essence |
||||||
|
7 |
Tuyau huile |
||||||
|
8 |
Vis bride |
||||||
|
9 |
Caoutchouc |
||||||
|
10 |
CLIP 8X0.8 |
||||||
|
11 |
Tuyau |
||||||
|
12 |
AP8910729 - FILTRO More informationQuantity required : 1 |
||||||
|
13 |
Vis bride |
||||||
|
14 |
AP8910728 - SFIATO More informationQuantity required : 1 |
||||||
|
15 |
CLIP 12X0.8 |
||||||
|
16 |
Tuyau |
All the exploded views of this vehicle
-
