Vehicle Exploded View - APRILIA QUASAR 180 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

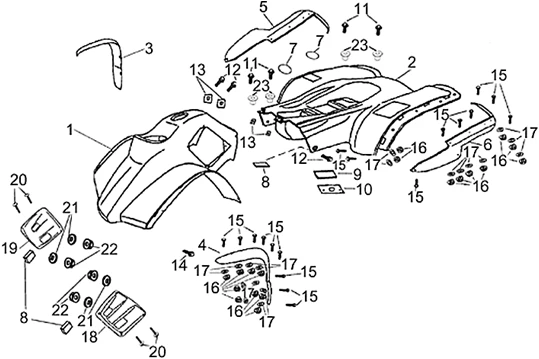

Chassis : 28.21 CARROSSERIE GRIP
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_28.21.PNG)
1 |
AP8910991 - SCUDO ANT.VERDE More informationQuantity required : 1 |
||||||
|
2 |
AP8910988 - SCUDO POST.GRIGIO More informationQuantity required : 1 |
||||||
|
3 |
AP8910994 - PARASPRUZZI ANT.DX More informationQuantity required : 1 |
||||||
|
4 |
AP8910996 - PARASPRUZZI ANT.SX More informationQuantity required : 1 |
||||||
|
5 |
AP8910989 - PARASPRUZZI POST.DX More informationQuantity required : 1 |
||||||
|
6 |
AP8910990 - PARASPRUZZI POST.DX More informationQuantity required : 1 |
||||||
|
7 |
AP8911029 - O-RING F45,7XF3,5 More informationQuantity required : 2 |
||||||
|
8 |
Caoutchouc |
||||||
|
9 |
Caoutchouc |
||||||
|
10 |
AP8910298 - PROTEZIONE More informationQuantity required : 1 |
||||||
|
11 |
Vis bride |
||||||
|
12 |
AP8910462 - VITE AUTOF. M6X16 More informationQuantity required : 4 |
||||||
|
13 |
AP8910308 - PIASTRINA M6 More informationQuantity required : 4 |
||||||
|
14 |
AP8910353 - VITE TE FLANG. More informationQuantity required : 2 |
||||||
|
15 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 18 |
||||||
|
16 |
DADO M5 |
||||||
|
17 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 18 |
||||||
|
18 |
Prise air D |
||||||
|
19 |
AP8910730 - PRESA ARIA DX More informationQuantity required : 1 |
||||||
|
20 |
Vis bride |
||||||
|
21 |
Rondelle plate |
||||||
|
22 |
DADO M4 |
||||||
|
23 |
Rondelle |
