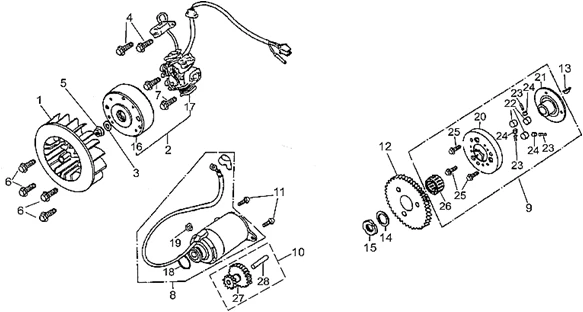

Moteur : 29.35 VOLANT-DÉMARREUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_29.35.PNG)
1 |
Ventilateur |
||||||
|
2 |
Volant cpl. |
||||||
|
3 |
AP8911063 - ROSETTA PIANA 12X25X2,3 More informationQuantity required : 1 |
||||||
|
4 |
Vis bride |
||||||
|
5 |
AP8910377 - DADO FLANG.M12 More informationQuantity required : 1 |
||||||
|
6 |
Vis bride |
||||||
|
7 |
Vis bride |
||||||
|
8 |
Démarreur cpl. |
||||||
|
9 |
Roue libre complète |
||||||
|
10 |
AP8910828 - INGRANAGGIO INTERMEDIO More informationQuantity required : 1 |
||||||
|
11 |
Vis bride |
||||||
|
12 |
Engrenage roue libre |
||||||
|
13 |
Clavette |
||||||
|
14 |
Rondelle plate |
||||||
|
15 |
DADO M22 |
||||||
|
16 |
Volant |
||||||
|
17 |
Stator |
||||||
|
18 |
Joint torique |
||||||
|
19 |
Écrou |
||||||
|
20 |
Flasque roue libre |
||||||
|
21 |
Roue libre |
||||||
|
22 |
AP8910825 - RULLO More informationQuantity required : 3 |
||||||
|
23 |
Ressort |
||||||
|
24 |
AP8910826 - FERMO More informationQuantity required : 3 |
||||||
|
25 |
Vis bride |
||||||
|
26 |
Cage à rouleaux |
||||||
|
27 |
Engrenage intermédiaire |
||||||
|
28 |
AP8911124 - ALBERINO More informationQuantity required : 1 |
