Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

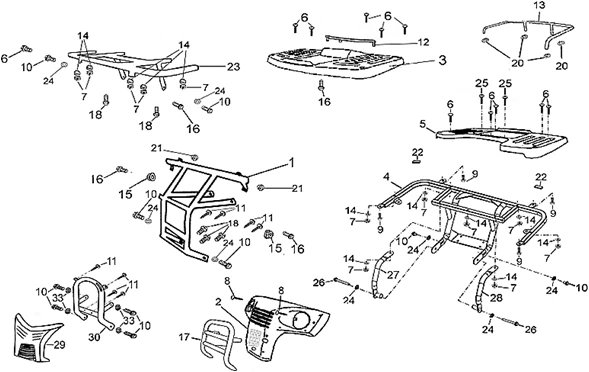

Chassis : 28.17 AV/AR PORTE-BAGAGES-PROT.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.17.PNG)
1 |
Châssis AV |
||||||
|
2 |
AP8911488 - PROTEZIONE RADIATORE More informationQuantity required : 1 |
||||||
|
3 |
AP8911003 - PORTAPACCHI ANT. More informationQuantity required : 1 |
||||||
|
4 |
AP8911405 - SUPPORTO PORTAPACCHI POST. More informationQuantity required : 1 |
||||||
|
5 |
AP8911005 - PORTAPACCHI POST. More informationQuantity required : 1 |
||||||
|
6 |
AP8911125 - VITE TE FLANG.M6X32 More informationQuantity required : 10 |
||||||
|
7 |
DADO M6 |
||||||
|
8 |
Vis bride |
||||||
|
9 |
Vis bride |
||||||
|
10 |
AP8910434 - VITE TE FLANG. M8X16 More informationQuantity required : 6 |
||||||
|
11 |
AP8910365 - VITE AUTOF.M5X16 More informationQuantity required : 4 |
||||||
|
12 |
AP8911004 - PROTEZIONE PORTAPACCHI ANT. More informationQuantity required : 1 |
||||||
|
13 |
AP8911007 - PROTEZIONE More informationQuantity required : 1 |
||||||
|
14 |
Rondelle plate |
||||||
|
15 |
Vis bride |
||||||
|
16 |
Vis bride |
||||||
|
17 |
AP8911311 - TELAIETTO ANT. More informationQuantity required : 1 |
||||||
|
18 |
Vis bride |
||||||
|
20 |
Rondelle plate |
||||||
|
21 |
DADO M5 |
||||||
|
22 |
Caoutchouc |
||||||
|
23 |
Support p-bagages |
||||||
|
24 |
Rondelle élastique |
||||||
|
25 |
Vis taraud |
||||||
|
26 |
Vis bride |
||||||
|
27 |
AP8911420 - SUPPORTO DX More informationQuantity required : 1 |
||||||
|
28 |
Support gauche |
||||||
|
29 |
AP8911487 - PROTEZIONE RADIATORE More informationQuantity required : 1 |
||||||
|
30 |
AP8911309 - TELAIETTO ANT. More informationQuantity required : 1 |
||||||
|
33 |
Rondelle élastique |
