Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

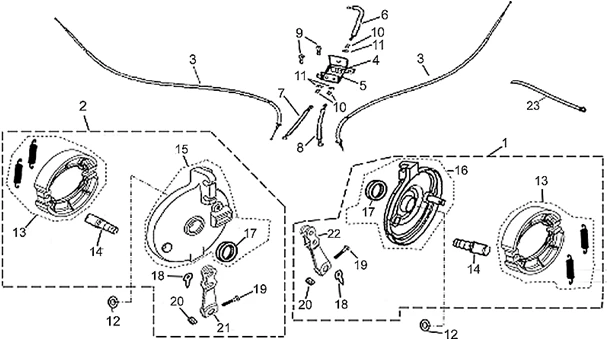

Chassis : 28.26 FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.26.PNG)
1 |
Sys.frein avant g. |
||||||
|
2 |
Sys.frein avant d. |
||||||
|
3 |
AP8911305 - CAVO FRENO ANT. More informationQuantity required : 2 |
||||||
|
4 |
AP8911457 - SDOPPIATORE More informationQuantity required : 1 |
||||||
|
5 |
Plaq.support |
||||||
|
6 |
AP8911306 - CAVO FRENO ANT. More informationQuantity required : 1 |
||||||
|
7 |
AP8911316 - CAVO FRENO ANT.DX More informationQuantity required : 1 |
||||||
|
8 |
AP8911314 - CAVO FRENO ANT.SX More informationQuantity required : 1 |
||||||
|
9 |
VITE AUTOF.M6X8 |
||||||
|
10 |
AP8910535 - INSERTO FILETTATO More informationQuantity required : 3 |
||||||
|
11 |
Écrou |
||||||
|
12 |
Rondelle plate |
||||||
|
13 |
Sabots à ress-paire |
||||||
|
14 |
AP8910924 - CAMMA FRENO ANT. More informationQuantity required : 2 |
||||||
|
15 |
Plaque porte-sabots G. |
||||||
|
16 |
Plaque porte-sabots D. |
||||||
|
17 |
AP8911140 - PARAOLIO More informationQuantity required : 2 |
||||||
|
18 |
Guide-câble |
||||||
|
19 |
Vite TE M6x30 |
||||||
|
20 |
DADO M6 |
||||||
|
21 |
AP8910927 - LEVA FRENO ANT.DX More informationQuantity required : 1 |
||||||
|
22 |
AP8910928 - LEVA FRENO ANT.SX More informationQuantity required : 1 |
||||||
|
23 |
AP8910328 - FASCETTA LR-220AH More informationQuantity required : 1 |
